Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50 Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Male RF Adapter | Mount Method: | Blind Mate Floating Mount |
| Rated Withstand Voltage: | 170VRMS* | Medium Pressure: | 500VRMS* |
| High Light: | Interconnect RF Connector Adapter,SMP Female RF Adapter,0.32mm RF Cable Adapters |
||
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector
SMP connectors, or sub-miniature push-on connectors, are typically used in high-density, blind-mate systems operating up to 40 GHz from DC.
Xi'an Elite Electronic currently offers a range of SMP cabled jack connectors, with cable crimp and soldered options. Our SMP connectors can also be used as PCB board-to-board interconnects with jack-to-jack adapters.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Other | ≤1.3 | |||
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

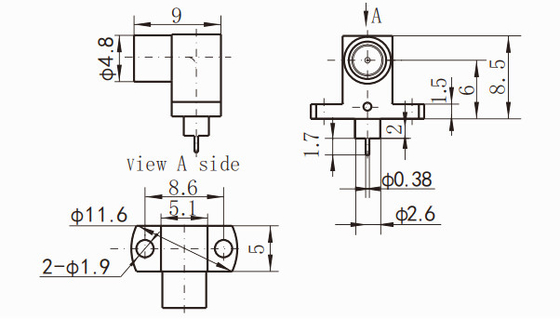

Outline Drawing of SMP Male 2-hole Flange Micro-strip Right Angle RF Connector
Related SMP Female Connector
1.
2.
3.
4.
Mounting method:
NOTE:
There are over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
