Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor

Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor

Large Image :  Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT(Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMP-KB1
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: L/C, T/T, Western Union, Credit Card
Supply Ability: 300,000,000 pcs per year
Detailed Product Description
Body Material: Brass Impedance: 50 Ohm
Color: Gold Plated Body Style: Straight
Type: SMP Female RF Adapter Mount Method: Blind Mate
Rated Withstand Voltage: 170VRMS* Medium Pressure: 500VRMS*
High Light:

Flexible Cable SMP RF Connector

,

Cable SMP Connector

,

SMP RF Coaxial Cable Connector

SMP RF Connector Introduction



The SMP interface enables design engineers to increase design performance and complexity while also improving form factor.
The SMP interconnect series relies on a floating female-to-female  adapter (commonly referred to as a bullet) to enable SMP male and PCB connector-equipped boards to be stacked. This durable construction gives this product line the ability to:


* Tolerate radial and axial misalignment
* Withstand multiple engagement/disengagement cycles without degradation in electrical performance



General Specification for SMP Connector Adapter
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS(at sea level)
Dielectrics Voltage-resistance
500VRMS(at sea leavel)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
normal≤2.5mΩ, hermetically sealed ≤4mΩ
Center conductor
normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range DC~18GHz 18~26.5GHz 26.5~40GHz
VSWR for straight connector
≤1.25
≤1.3 ≤1.4
VSWR for right angel connector ≤1.3
VSWR for adapter ≤1.25 ≤1.3 ≤1.4
VSWR other ≤1.3
Center Conductor Male
Tin Phosphor Bronze/Kovar Alloy
gold plated
Female
beryllium bronze
gold plated
Elastic Contact
beryllium bronze
gold plated
Shell and other Metal Parts
 brass/beryllium bronze/Kovar Alloy/copper alloy stainless steel passivated
Insulators
glass sintering/PTFE/PEI
Leakage Rate for
hermetically sealed connector
1.01325×10-3 Pa·cm3 /s

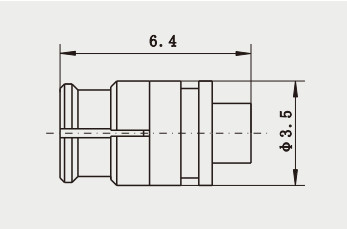

Outline Drawing of
SMP Female RF Adapter


Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 0



Model No. L(mm)
SMP-KB1-3 L=12.6, SMP female rf adapter
SMP-JFB1G-10 L=11, SMP female rf adapter
SMP-KFB1-10 L=7.5, SMP female rf adapter
SMP-KWFB1-13 L=7, SMP female rf adapter


Related SMP female connectors
1.
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 1


2.
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 2


3.
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 3



4.
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 4

Install Introduction:

Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 5

Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 6



NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
Semi Rigid/Flexible Cable Female SMP RF Connector 0.29mm Inner Conductor 7
