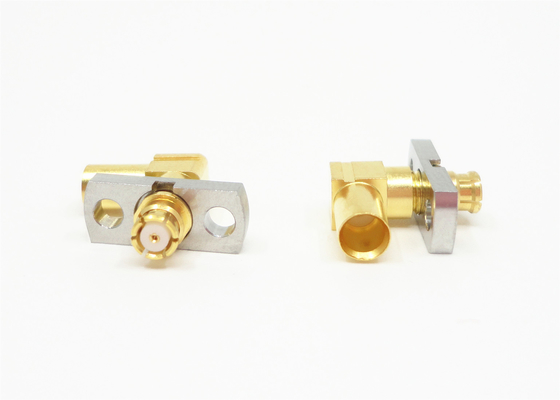

90 Degree Elbow SMP Female Connector 2 Hole Series DC~40GHz For CXN3506 Cable

Large Image : 90 Degree Elbow SMP Female Connector 2 Hole Series DC~40GHz For CXN3506 Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	SMP-KWF506-127

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMP RF Coaxial Conector	Frequency Range:	DC~40GHz
Impedance:	50Ω	Certificate:	CE ROHS
Life Span:	500Cycles	Material:	Brass
Rated Voltage:	170VRMS*	Dielectric Withstand Voltage:	500VRMS*
Highlight:	90 Degree SMP Female Connector , 40GHz SMP Female Connector , CXN3506 Cable SMP Connector

90 Degree Elbow SMP Female 2-hole Series DC~40GHz for CXN3506 Cable

The SMP interface enables design engineers to increase design performance and complexity while also improving form factor.
The SMP interconnect series relies on a floating female-to-female adapter (commonly referred to as a bullet) to enable SMP male and PCB connector-equipped boards to be stacked. This durable construction gives this product line the ability to:

* Tolerate radial and axial misalignment
* Withstand multiple engagement/disengagement cycles without degradation in electrical performance

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Insulation Resistance	≥2000MΩ
Dielectrics Voltage-resistance	500VRMS*
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/

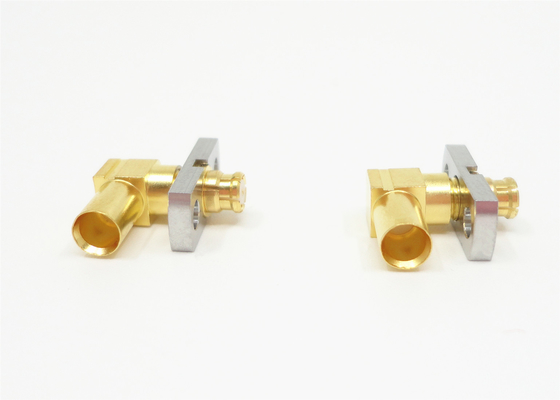

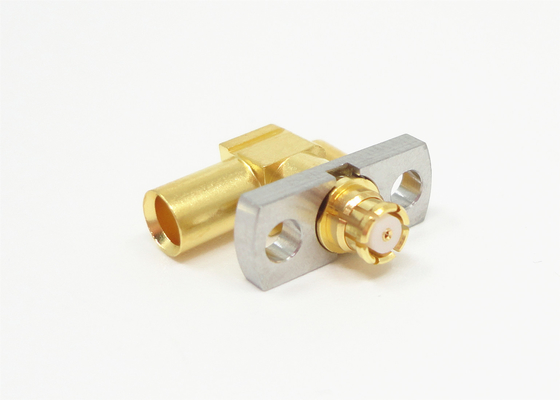

Picture of 90 Degree Elbow SMP Female 2-hole Series DC~40GHz for CXN3506 Cable:

90 Degree Elbow SMP Female Connector 2 Hole Series DC~40GHz For CXN3506 Cable 0

Related products:

Model Number	L(mm)	D(mm)	Cable Type	Note
SMP-KWF506-1	13.4	12.6	CXN3506
SMP-KWF506-2	8	2.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-4	8.2	12.2	CXN3506
SMP-KWF506-5	9	12.2	CXN3506
SMP-KWF506-6	6.8	11.5	CXN3506
SMP-KWF506-19	8	11.6	CXN3506
SMP-KWF506-7	6.8	11.5	CXN3506
SMP-KWF506-9	8.9	11.8	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-11	8.3	13.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-13	13.2	17.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-16	10.5	12.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-17	6.8	11.6	CXN3506
SMP-KWF506-18	8.9	14.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-27	8.9	12.2	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-28	6.8	11.8	CXN3506
SMP-KWF506-32	8.9	12.8	CXN3506	Flange with 360° Free Rotate
SMP-KWF506-33	8	17.6	CXN3506
SMP-KWF506-34	10	14.2	CXN3506	Flange with 360° Free Rotate

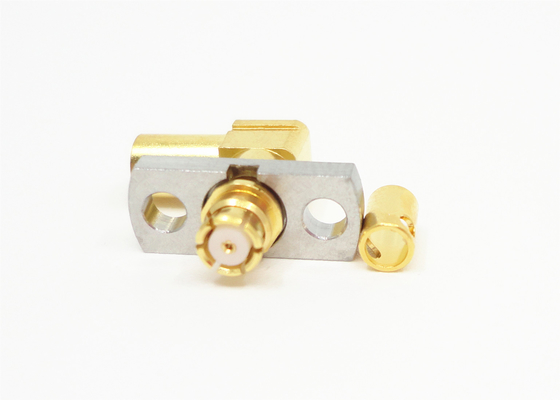

90 Degree Elbow SMP Female Connector 2 Hole Series DC~40GHz For CXN3506 Cable 1

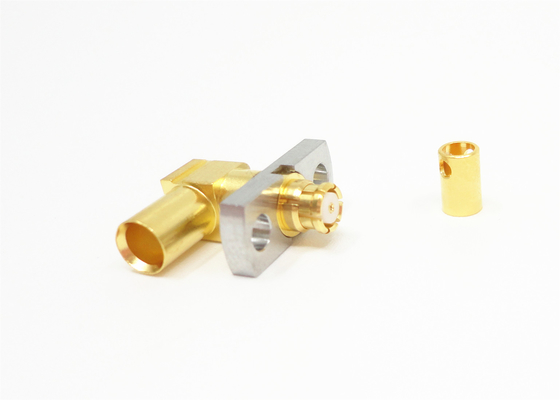

90 Degree Elbow SMP Female Connector 2 Hole Series DC~40GHz For CXN3506 Cable 2

Features and Benefits:
- DC to 40 GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore

Applications:

Antennas
Aerospace
Board-to-board interconnect
Telecommunications
Military
Instrumentation

Product Cataloge:

RF Adapter

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
