| Impedance: | 50Ω | Certificate: | CE ROHS ISO-9001-2015 |
|---|---|---|---|
| Durability: | 500 Cycles | Gender: | Male/Plug |
| Body Style: | Straight | Material: | Stainless Steel |
| Plating: | Passivated | Insulating Medium: | PTFE |
| High Light: | Full Detent SMP RF Connector,Φ0.7 SMP RF Connector,Φ0.7 male bulkhead connector |
||

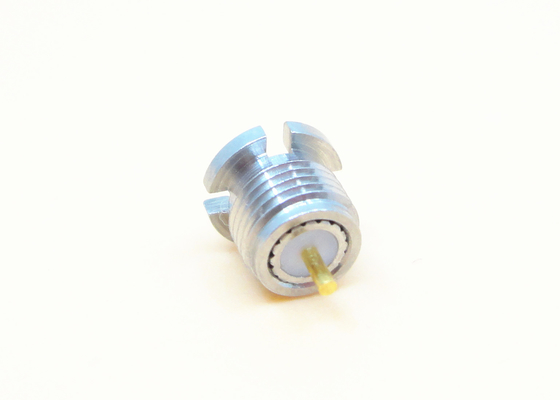

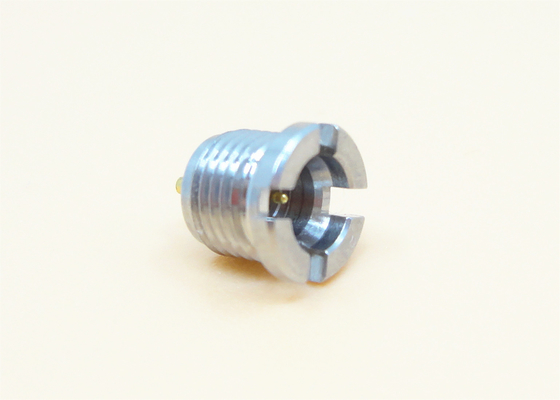

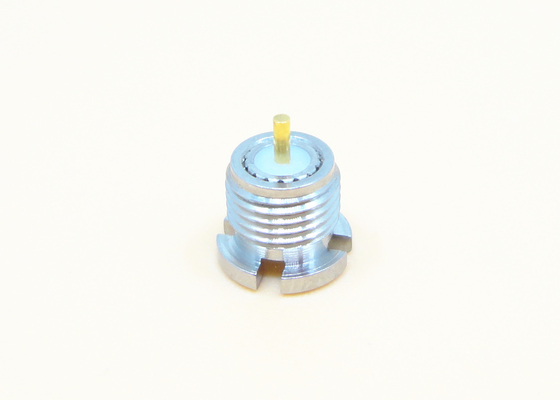

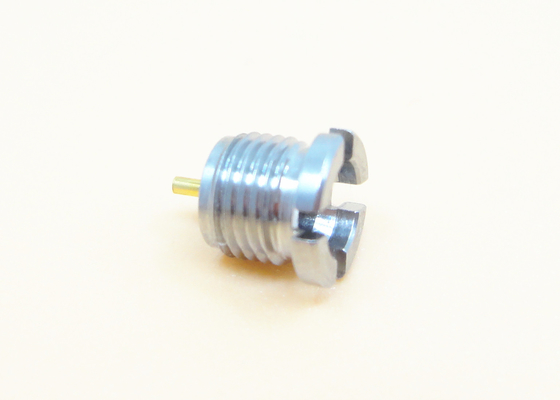

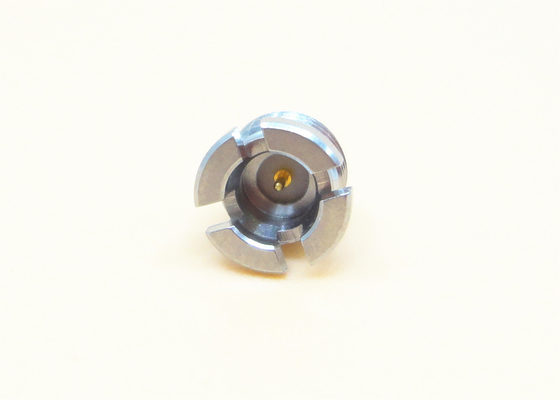

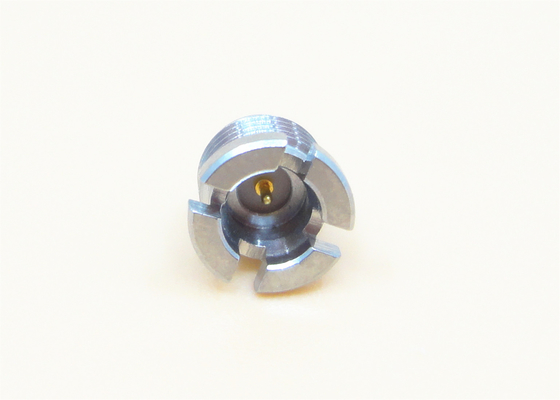

SMP Male Bulkhead Stainless Steel Full Detent with φ0.7 Termination Connector
The SMP interface enables design engineers to increase design performance and complexity while also improving form factor.
The SMP interconnect series relies on a floating female-to-female adapter (commonly referred to as a bullet) to enable SMP male and PCB connector-equipped boards to be stacked. This durable construction gives this product line the ability to:
* Tolerate radial and axial misalignment
* Withstand multiple engagement/disengagement cycles without degradation in electrical performance
Frequency range: DC - 40 GHz
Industry standard conforming to mil-std-348
Push on or snap on couplings
Gold plated and passivated stainless steel
Male and female, right angle and right angle selection
Selection of common type and airtight seal flange installation and thread installation
The plug has three interface forms: full clamping, limit clamping and smooth hole (including braking).
Custom connectors available
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/ | |
antenna
space flight
Board to board interconnection
telecom
Instruments and Apparatuses
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. RF Loads, Terminations (TNC,SMA, SSMA, SMP, SSMP, N, )
9. ODM Products
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
