| Item: | SMA RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Gender: | Female | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Brass | Application: | Audio/Vedio/Microwave |
| High Light: | ROHS SSMA RF Connector,Female Brass SSMA RF Connector,18GHz SSMA RF Connector |
||
SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, aerospace, microwave communications and other fields
Key Features:

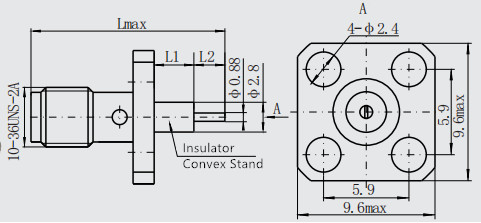

Outline Drawing:
| Model Number | L | L1 | L2 | Description |
| SSMA-KFD11 | 14.4 | 2.5 | 2.2 max | SSMA female 4-hole flange rf connector |
| SSMA-KFD101 | 22.6 | 9.5 | 3.4 max | |
| SSMA-KFD114 | 14.9 | 3 | 2.2 max |
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Application:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
