Send Message

Xi'an Elite Electronic Industry Co., Ltd.



Leading Provider Of Systematic Interconnection Solution In China

Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
VR SHOW
Home ProductsSMA RF Connector

RF Gold Plated Solder SMA Male Straight Coax Connector

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

RF Gold Plated Solder SMA Male Straight Coax Connector

RF Gold Plated Solder SMA Male Straight Coax Connector
RF Gold Plated Solder SMA Male Straight Coax Connector RF Gold Plated Solder SMA Male Straight Coax Connector

Large Image :  RF Gold Plated Solder SMA Male Straight Coax Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMA-JFB05A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 Pieces Per Month
Detailed Product Description
Product Name: SMA RF Coaxial Conector Plating: Gold Plated
Gender: Male Impedance: 50Ω
Frequency: DC~18GHz Durability: 500 Cycles
Application: Communication
High Light:

sma antenna connector

,

sma coax connector

RF Gold Plated Solder SMA Male Straight Coax Connector

SMA series is a kind of mini high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth, superior electrical characteristics. SMA is the most widely used RF coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.



RF Gold Plated Solder SMA Male Straight Coax Connector 0



Specification:



Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS
Dielectrics Voltage-resistance 1000VRMS
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless  Passivation
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles
Tightening torque of connection 0.79-1.13N .m





Features:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead ,or 4 holes panel configurations
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz)



Application:

* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect



More Detail of

RF Gold Plated Solder SMA male Straight Coax Connector :

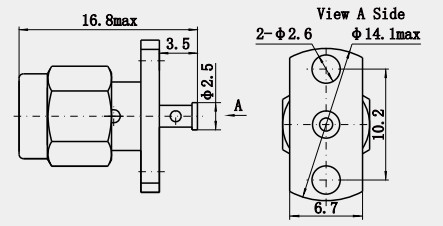

RF Gold Plated Solder SMA Male Straight Coax Connector 1





Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints



NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8618437926277

Send your inquiry directly to us
