Item: | SMA RF Conector | Plating: | Gold Plating |
---|---|---|---|
Gender: | Female | Impedance: | 50Ω |
Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
Body: | Brass | Application: | Audio/vedio/microwave |
Highlight: | 18GHz SMA RF Connector,50Ω SMA RF Connector,Brass Sma Coax Connector |

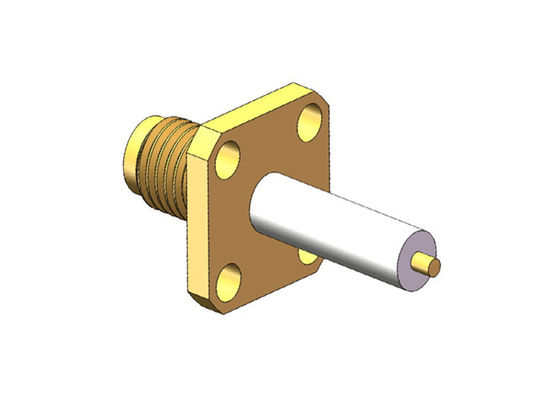

SMA series is a miniature RF coaxial connector developed and produced according to Mil-C-39012. It has the characteristics of small volume, good bandwidth and excellent electrical performance.
SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.

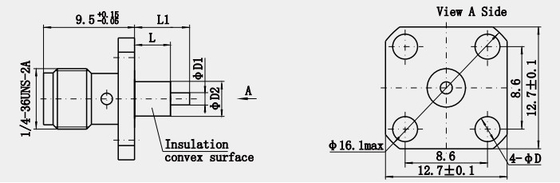

Interface Dimensions:
Key Features:
Specifiacation of Sma Rf Connectors:
Interface according to | IEC60169-15 |
Impedance | 50Ω |
Freqency Range | DC to 18GHz |
Insertion Loss | ≤0.30dB |
VSWR | ≤1.3 |
Insulation Resistance | ≥5000MΩ |
Center Contact Resistance | ≤3mΩ |
Outer Contact Resistance | ≤2mΩ |
Mating Cycles | ≥500 |
Temperature Range | -65-+165℃ |
Dielectric | PTFE |

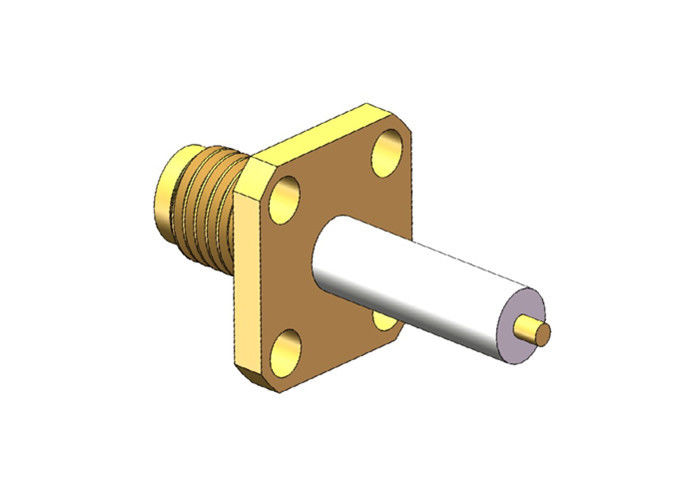

More Detail of SMA RF Coax Connectors:
Model No. | L | L1 | D | D1 | D2 | Note |
SMA-KFD1308 | 11.7 | 13.1 | 2.6 | 1.3 | 4.1 | |
SMA-KFD1318 | 7 | 17 | 2.6 | 1.3 | 4.1 | |
SMA-KFD1367 | 5 | 11 | 2.6 | 1.3 | 4.1 | |
SMA-KFD1393 | 8.4 | 9.4 | 2.6 | 1.3 | 4.1 | |
SMA(S)-KFD1414 | 23.9 | 27 | 2.6 | 1.3 | 4.1 | Water proof |
Product Cataloge:
RF Adapter |
SMA RF Connector |
SSMP RF Connector |
TNC RF Connector |
N Type RF Connector |
MCX/MMCX RF Connector |
Millimeter Wave Connectors(2.4mm, 2.92mm) |
RF Cable Assemblies |
Waveguide to Coaxial Adapter |
Glass-to-metal Hermetic Seals |
J30J Series Connector |
Microwave Rotary Joints |
Application:
Related Product
1.SMA Female Bulkhead Mount RF Connectors for PCB
2.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors
Model No. | L | L1 | L2 | D | Note |
SMA-KWFD | 29 | 15 | 2.9 | 1.3 | |
SMA-KWFD8 | 15.1 | 3 | 1 | 1.3 | |
SMA-KWFD103 | 22.4 | 5.4 | 5.7 | 1.3 | |
SMA-KWFD113 | 34 | 20 | 2.9 | 1.3 | |
SMA-KWFD118 | 20.1 | 4.8 | 4.2 | 1.3 | |
SMA-KWFD120 | 16.1 | 4 | 1 | 1.3 | |
SMA-KWFD122 | 17.4 | 2.3 | 4 | 1.3 |
3.Brass 2 Holes Flange Mount SMA Plug RF Coax Connector
Model No. | L | L1 | D | Note |
SMA-JFD153G | 13.2max | 1.5 | 0.8 | Stainless steel housing |
SMA-JFD172 | 13.2max | 3 | 1.3 | |
SMA-JFD173 | 17.2max | 3 | 1.3 |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
