Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP Female To SMP RF Adapter | Body Material: | Brass |
|---|---|---|---|
| Impedance: | 50Ohm | Color: | Gold Plated |
| Gender: | Jack To Jack | Body Style: | Straight |
| Type: | SMP Female RF Adapter | Mount Method: | Blind Mate |
| High Light: | Female To Female RF Adapter,Weak Insertion RF Adapter,20mm RF Adapter |
||
Weak Insertion Force SMP Female to Female RF Adapter 20mm
SMP is a miniature push in RF coaxial connector adapter, which has the characteristics of small size, light weight, good seismic performance, wide operating band and so on.
The operating frequency is up to 30GHz (our high-performance SMP connector products can reach 40GHz). The plug has three interface forms: full detent, limit detent and optical hole (including braking).
Various interface forms can meet the axial or radial motion required for blind plug in the coupling use of wide to wide connectors.
It is suitable for installation occasions with high reliability and modular intensive requirements.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-³ Pa·cm³ /s
|
|||

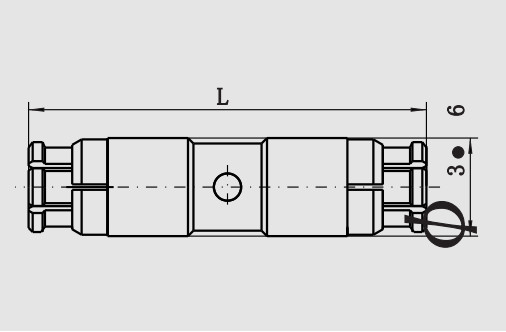

Outline Drawing of
SMP Female To SMP Female RF Adapter
Related SMP female to female Adapters
1.
| Model No. | Description |
| SMP-KWFK | SMP female to female rf adapter, right angle, 2 holes flange. |
2.
| Model No. | Description |
| SMP-KK72 | SMP female to female rf adapter |
3.
| Model No. | L(mm) | |
| SMP-KK59 | 16 | Compression Length:15mm, right end mated with smooth bore only. |
| SMP-KK62T | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK62T-Y1 | 13 | Compression Length:12mm, right end mated with smooth bore only. 192H Salt Fog Resistance |
| SMP-KK190T | 12.7 | Compression Length:11.9mm, right end mated with smooth bore only. |
4.
| Model No. | L(mm) |
| SMP-KK99 | L=9.6, SMP female to female rf adapter |
| SMP-KK166 | L=10.2, SMP female to female rf adapter |
| SMP-KK175 | L=6.7, SMP female to female rf adapter |
| SMP-KK176 | L=7.1, SMP female to female rf adapter |
| SMP-KK177 | L=7.4, SMP female to female rf adapter |
| SMP-KK178 | L=8.1, SMP female to female rf adapter |
| SMP-KK188 | L=10, SMP female to female rf adapter |
| SMP-KK189 | L=9.7, SMP female to female rf adapter |
| SMP-KK192 | L=9, SMP female to female rf adapter |
| SMP-KK239 | L=9.9, SMP female to female rf adapter |
| SMP-KK249 | L=6.7, SMP female to female rf adapter |
5.
| Model No. | Description |
| SMP-KK96 |
L=17.35, SMP female to female rf adapter |
| SMP-KK97 | L=19.6, SMP female to female rf adapter |
| SMP-KK98 | L=11, SMP female to female rf adapter |
Notes:
We have more than 1000 SMP female and male adapters to choose from. If you do not find the product you are using,
Please contact us for the complete catalog. Accept custom dimensions.
