Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Female RF Adapter | Mount Method: | Blind Mate |
| Rated Withstand Voltage: | 170VRMS* | Medium Pressure: | 500VRMS* |
| High Light: | Stainless Steel RF Adapter,SMP RF Adapter,Φ5 RF Adapter |
||
Brass RF Connector Adapter Straight SMP Female to Female with φ5
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.
Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors.
Apply for the install situation with the requirement of high reliability modular intensive.
| General Specification for SMP Connector Adapter | ||||
Impedance | 50Ω | |||
Frequency Range | DC~40GHz | |||
Rated Voltage | 170VRMS(at sea level) | |||
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) | |||
Insulation Resistance | ≥2000MΩ | |||
Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ | |||
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ | |||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male | Sn-P bronze | gold plated | |
| Female | beryllium bronze | gold plated | ||
Elastic Contact | beryllium bronze | gold plated | ||
Shell and other Metal Parts | gold plated brass, passivated stainless steel | |||
Insulators | glass sintering/PTFE/PEI | |||
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s | |||

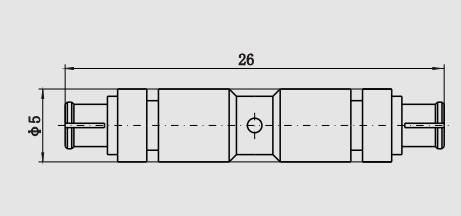

Outline Drawing of
SMP Female to SMP Female RF Adapter
| Model No. | L(mm) |
| SMP-KK | L=6.45, SMP female to female rf adapter |
| SMP-KK12 | L=5.8, SMP female to female rf adapter |
| SMP-KK88 | L=6.2, SMP female to female rf adapter |
| SMP-KK173 | L=6.1, SMP female to female rf adapter |
| SMP-KK174 | L=5.8, SMP female to female rf adapter |
| SMP-KK180 | L=12.3, SMP female to female rf adapter |
| SMP-KK182 | L=8.1, SMP female to female rf adapter |
| SMP-KK202 | L=5.9, SMP female to female rf adapter |
Related SMP female to female Adapters
1.
| Model No. | Description |
| SMP-KWFK | SMP female to female rf adapter, right angle, 2 holes flange. |
2.
| Model No. | Description |
| SMP-KK72 | SMP female to female rf adapter |
3.
| Model No. | L(mm) | |
| SMP-KK59 | 16 | Compression Length:15mm, right end mated with smooth bore only. |
| SMP-KK62T | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK62T-Y1 | 13 | Compression Length:12mm, right end mated with smooth bore only. 192H Salt Fog Resistance |
| SMP-KK190T | 12.7 | Compression Length:11.9mm, right end mated with smooth bore only. |
4.
| Model No. | L(mm) |
| SMP-KK99 | L=9.6, SMP female to female rf adapter |
| SMP-KK166 | L=10.2, SMP female to female rf adapter |
| SMP-KK175 | L=6.7, SMP female to female rf adapter |
| SMP-KK176 | L=7.1, SMP female to female rf adapter |
| SMP-KK177 | L=7.4, SMP female to female rf adapter |
| SMP-KK178 | L=8.1, SMP female to female rf adapter |
| SMP-KK188 | L=10, SMP female to female rf adapter |
| SMP-KK189 | L=9.7, SMP female to female rf adapter |
| SMP-KK192 | L=9, SMP female to female rf adapter |
| SMP-KK239 | L=9.9, SMP female to female rf adapter |
| SMP-KK249 | L=6.7, SMP female to female rf adapter |
5.
| Model No. | Description |
| SMP-KK96 | L=17.35, SMP female to female rf adapter |
| SMP-KK97 | L=19.6, SMP female to female rf adapter |
| SMP-KK98 | L=11, SMP female to female rf adapter |
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
