|Frequency Range:||DC~18GHz||Durability:||500 Cycles|
|Application:||RF, Satcom /antenna/Audio||Contacts:||Beryllium Bronze|
|Certificate:||ROHS, ISO-9001-2015||Torque:||0.79 ~ 1.13 N.m|
SMA RF Connector Adapter,
Plated SMA Male To SMA Female,
Brass Gold Male SMA Connector
The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
High Performance SMA RF Connectors:
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
|Center Resistance||Center Conductor||≤3.0mΩ|
Material & Mechanical Characteristics:
|Center Conductor||Male||Brass Gold plated|
|Female||Sn-P Bronze Gold plated|
|Elastic Contact||Beryllium bronze Nickel plated|
|Shell and other Metal Parts||Brass Nickel plated|
|Crimping Sleeve||Brass Nickel plated|
|Tightening torque of connection||0.79－1.13N .m|
|Sealing Ring||Silicone Rubber|
More Detail of

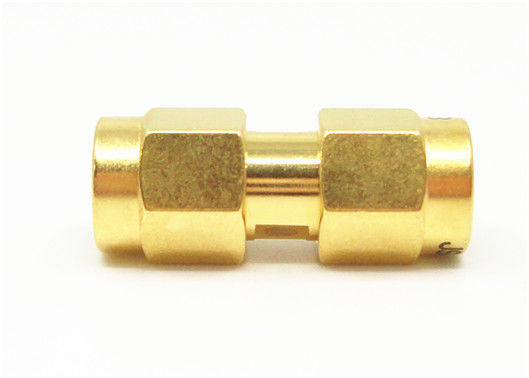

50 Ω Brass Gold Plated SMA RF Adapter Beryllium Bronze Contacts:
|SMA-JJ||Gold plated SMA male to SMA male rf connector|
|SMA-JJG||Stainless steel gold plated SMA male to SMA male rf connector|
There are other SMA RF Adapters(mm):
|SMA-JWJ||SMA male to SMA male right angle rf adapter|
|SMA-JWK||15.6max||SMA male to SMA female right angle rf adapter|
|SMA-JWKG||15.6max||Stainless steel SMA male to SMA female right angle rf adapter|
|SMA-JWK1-Y1||16.5max||SMA male to SMA female right angle rf adapter|
We have over 10,000 types of SMA Connector/Adapter, if the connector you are using is not found, please contact us with your details.
