| Product Name: | SMP Male Limited Detent Hermetically Sealed Connector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Male | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermeticity: | 1.01325×10-3Pa·cm3/s |
| High Light: | SMP Male RF Coaxial Connector,Microstrip Pin SMP RF Connector,Straight Bulkhead SMP Connectors |
||

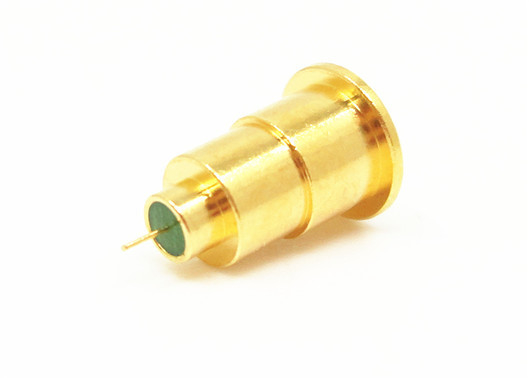

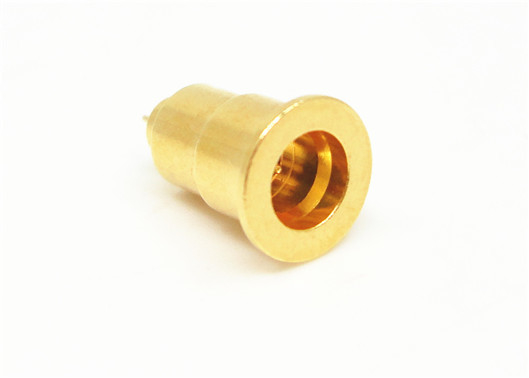

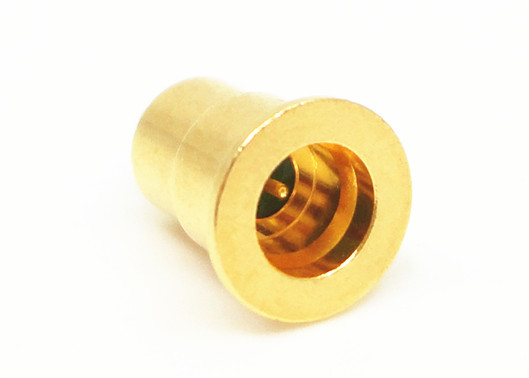

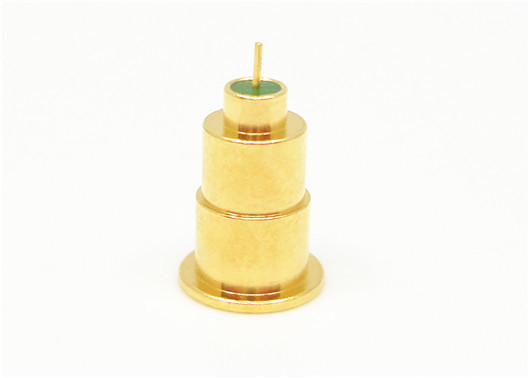

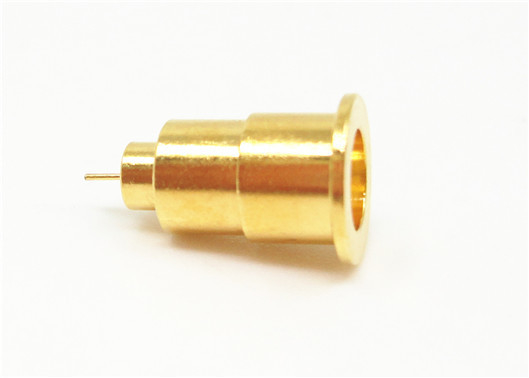

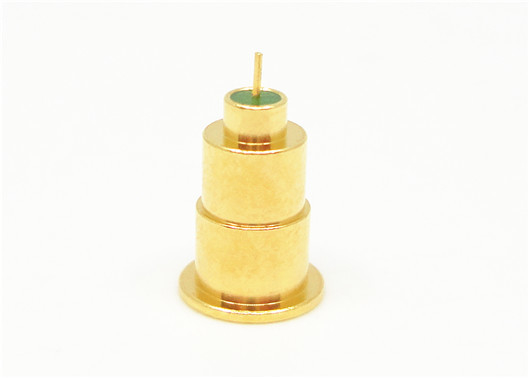

Straight Bulkhead Male SMP RF Connector Microstrip Pin Hermetic Connectors
SMP is a small push-in or snap-in RF coaxial connector, which has the characteristics of small size, light weight, good shock resistance, and wide frequency band operation. Its operating frequency is up to 30GHz (our SMP connector products can reach 40GHz), and the plug has three interface forms - full card position, limit card position and light hole (including belt brake). PCB mount, cable mount and serial adapters provide interconnect solutions for board-to-board, blind-mate, and rack and panel applications while maintaining packaging density. It is suitable for installations with high reliability modular intensive requirements.
Specification of SMP RF Connector
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits of SMP RF Connector
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP(M)-JYD12-L | Hermetic seal smp male limited detent rf connector |
| SMP(M)-JYD12-S | Hermetic seal smp male smooth bore rf connector |
Other SMP RF Connector(mm):
| Model No. | L | d | Interface | Note |
| SMP(M)-JHD | 1.6 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-S | 1.6 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-F | 1.6 | 0.39 | full detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-Y1 | 1.6 | 0.39 | limited detent | interface deepth 1.7mm, hermetic, 192H salt fog resistance |
| SMP(M)-JHD26-S | 0.8 | 0.3 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD42-S | 2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51 | 1.2 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51-S | 1.2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54 | 1.1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54-S | 1.1 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD63 | 2.5 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD153 | 1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
Applications of SMP RF Connectors:
- Military
- Antennas
- Broadband
- Aerospace
- Broadband
- Telecommunications
- Instrumentation
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
