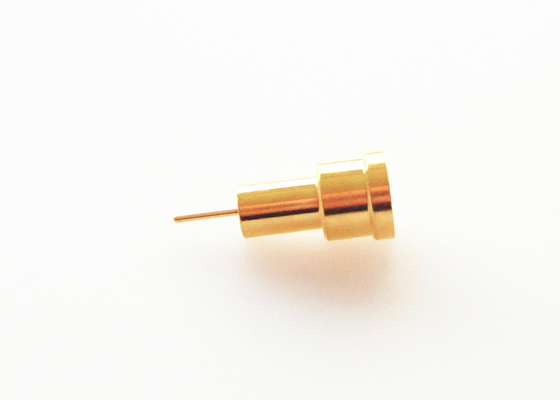

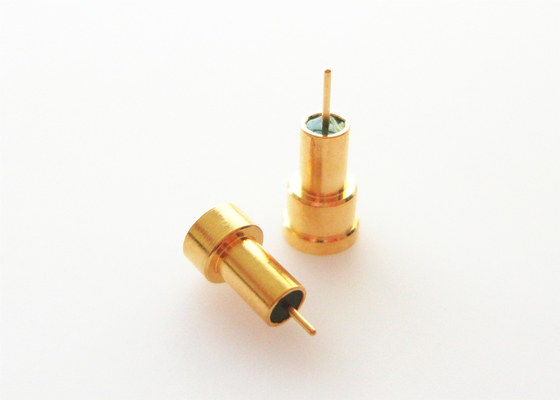

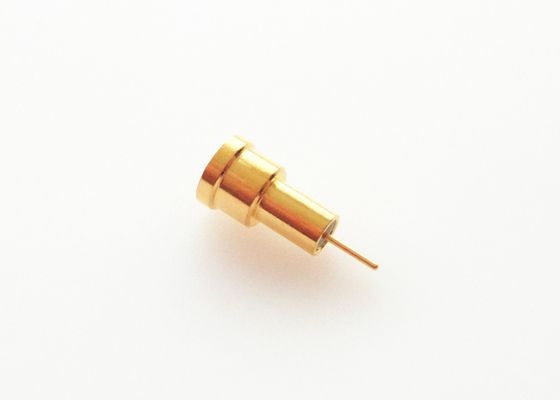

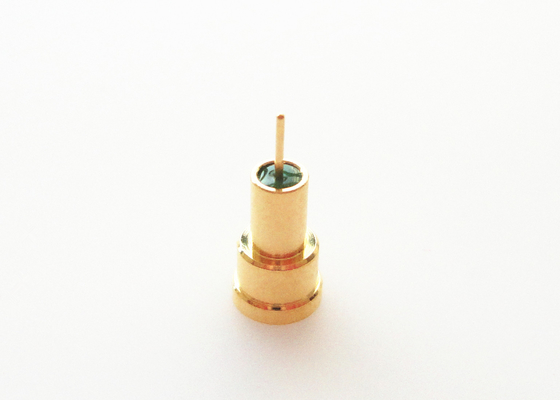

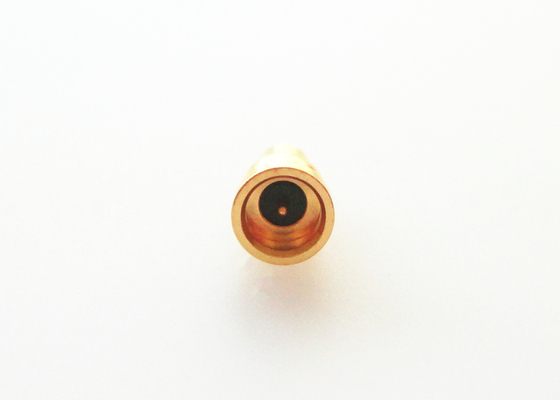

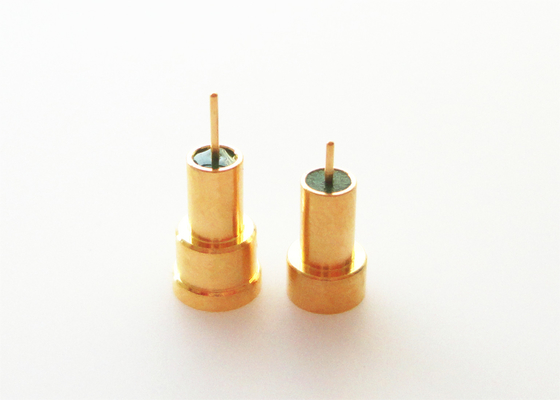

SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent

SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent
SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent

Large Image :  SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMP(M)-JHD181
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union, Credit Card
Supply Ability: 300,000,000 pcs per year
Detailed Product Description
Frequency Range: DC~40GHz Impedance: 50Ω
Connector Series: SMP Type Gender: Male
Engagement Depth: 1.7mm Diameter Of Pin: φ2.5
Hermecity: <1.01325 X 10E-08 Std.cc/s
High Light:

Bulkhead Microstrip SMP Connector

,

Straight Pin RF Coaxial Cable Connector

,

SMP RF Coax Adapter



SMP Male Limited Detent Hermetical Sealed Connector Attachment Microstrip Terminal



SMP is a small push in or snap in RF coaxial connector, which has the characteristics of small size, light weight, good seismic resistance, wide working frequency band, etc. Its operating frequency is up to 30GHz (our SMP connector products can reach 40GHz), and the plug has three types of interfaces: full clip, limit clip and optical hole (including band gate). PCB mounting, cable mounting, and serial adapters provide interconnection solutions for board to board, blind plug, and rack and panel applications while maintaining package density. It is suitable for installation with high reliability, modular and intensive requirements.


Specification of SMP RF Connector



Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥2000MΩ
Dielectrics Voltage-resistance  500VRMS*
Center Resistance Outer conductor ≤4mΩ
  Center conductor ≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
  Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s



Model No. L d Interface Note
SMP(M)-JHD 1.6 0.39 limited detent interface deepth 1.7mm, hermetic
SMP(M)-JHD-S 1.6 0.39 smooth bore interface deepth 1.7mm, hermetic
SMP(M)-JHD-F 1.6 0.39 full detent interface deepth 1.7mm, hermetic
SMP(M)-JHD-Y1 1.6 0.39 limited detent

interface deepth 1.7mm, hermetic,
192H salt fog resistance

SMP(M)-JHD26-S 0.8 0.3 smooth bore interface deepth 1.7mm, hermetic
SMP(M)-JHD42-S 2 0.39 smooth bore interface deepth 1.7mm, hermetic
SMP(M)-JHD51 1.2 0.39 limited detent interface deepth 1.7mm, hermetic
SMP(M)-JHD51-S 1.2 0.39 smooth bore interface deepth 1.7mm, hermetic
SMP(M)-JHD54 1.1 0.39 limited detent interface deepth 1.7mm, hermetic
SMP(M)-JHD54-S 1.1 0.39 smooth bore interface deepth 1.7mm, hermetic
SMP(M)-JHD63 2.5 0.39 limited detent interface deepth 1.7mm, hermetic
SMP(M)-JHD153 1 0.39 limited detent interface deepth 1.7mm, hermetic



NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.


Features and Benefits of SMP RF Connector


Gold plated
Sub-miniature
DC to 40 GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice



Detailed Drawing of SMP RF Connector



SMP Male Straight Chamfer Pin Termination Microstrip RF Connector Hermetically Seal Limited Detent 0
Applications of SMP RF Connector
-Army

-Antenna
-Broadband
-Telecommunications
-Instrumentation
-Phased array antenna
-Board to board interconnection


Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
