| Product Name: | SMP Male Limited Detent Hermetically Sealed Connector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Male | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermecity: | ≤1.01325×10 -³ Pa.cm³/s |
| High Light: | Male Right Angle RF Connector,Hermetic SMP RF Connector,Straight Line Termination RF Cable Connector |
||

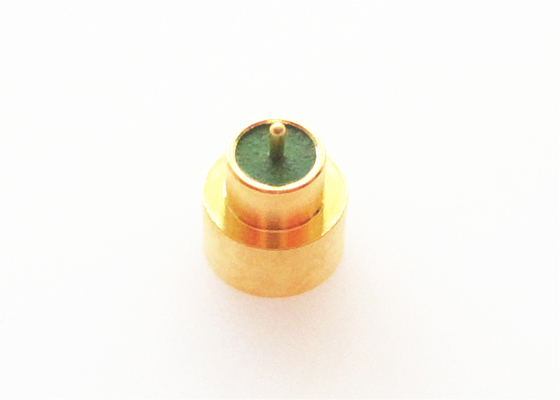

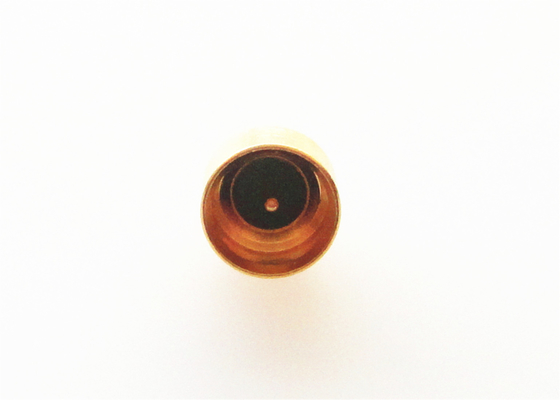

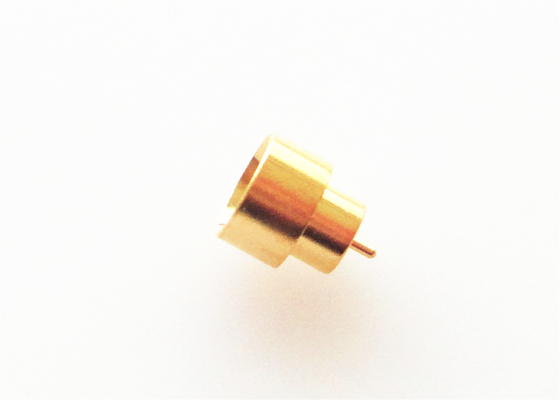

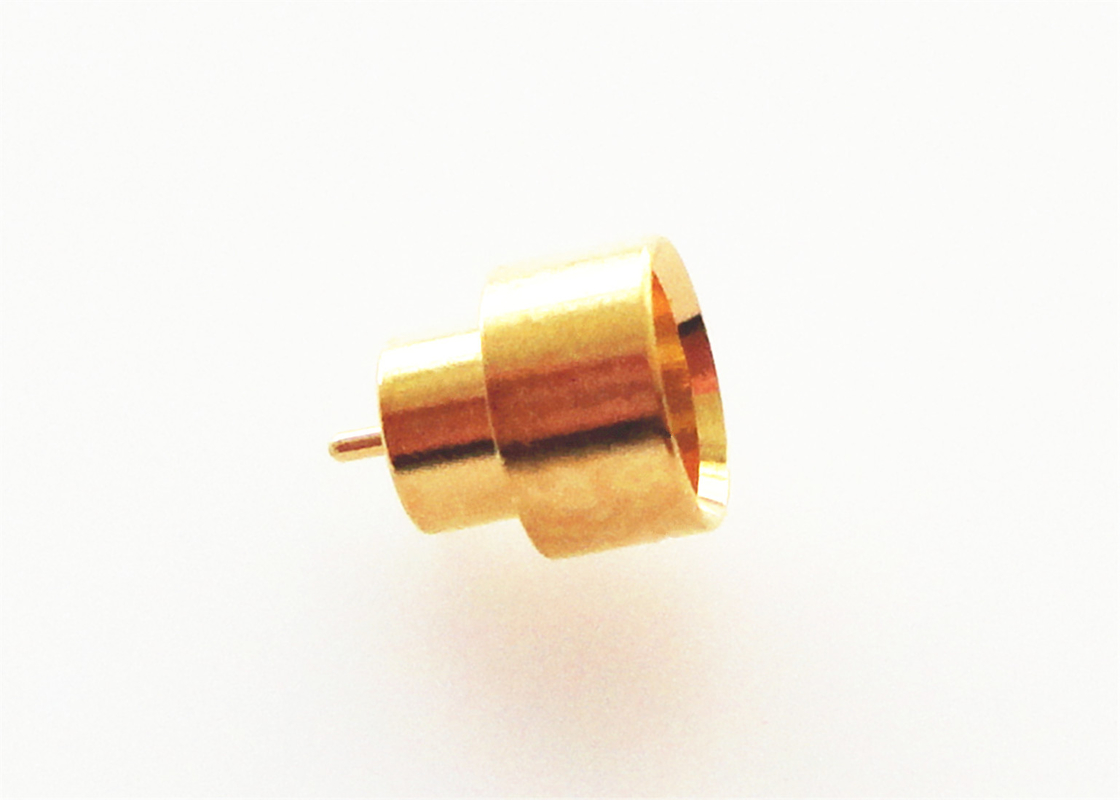

SMP Male Limited Detent Hermetically Sealed Connector Attachment Microstrip Terminal
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-³Pa·cm³/s | |
Detailed Drawing
| Model No. | L | d | Interface | Note |
| SMP(M)-JHD | 1.6 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-S | 1.6 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-F | 1.6 | 0.39 | full detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD-Y1 | 1.6 | 0.39 | limited detent | interface deepth 1.7mm, hermetic, |
| SMP(M)-JHD26-S | 0.8 | 0.3 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD42-S | 2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51 | 1.2 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD51-S | 1.2 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54 | 1.1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD54-S | 1.1 | 0.39 | smooth bore | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD63 | 2.5 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
| SMP(M)-JHD153 | 1 | 0.39 | limited detent | interface deepth 1.7mm, hermetic |
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
Applications
- Antennas- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
