Product Details:
Payment & Shipping Terms:
|
Frequency Range: | DC~40GHz | Impedance: | 50Ω |
---|---|---|---|
Glass: | 7052 7070 | Hermecity: | <1.01325 X 10E-08 Std.cc/s |
Insulation Resistance: | ≥2000MΩ | Medium Pressure: | 500VRMS* |
Rated Withstand Voltage: | 170VRMS* | VSWR: | ≤1.3 |
High Light: | Brass Stainless Steel SMP Connector,Limited Detent RF Male Connector,Cable Mount RF Coax Adapter |

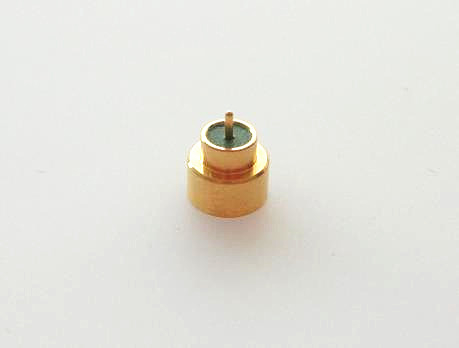

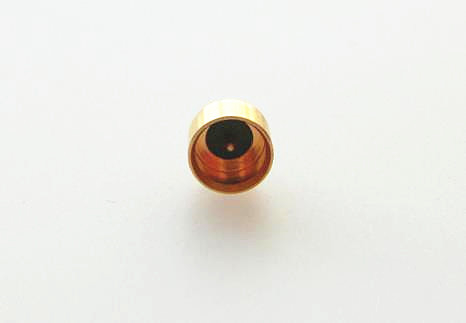

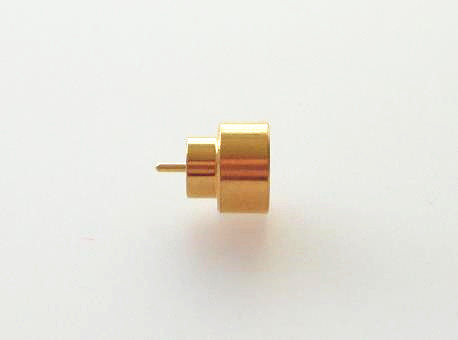

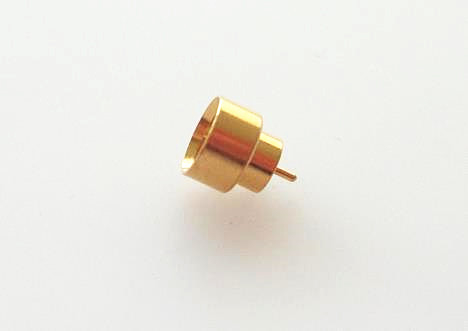

SMP Male Limited Detent Hermetically Sealed Connector Attachment Pin Terminal
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
Electrical Characteristics | ||
Impedance | 50Ω | |
Frequency Range | DC~40GHz | |
Rated Voltage | 170VRMS* | |
Insulation Resistance | ≥2000MΩ | |
Dielectrics Voltage-resistance | 500VRMS* | |
Center Resistance | Outer conductor | ≤4mΩ |
Center conductor | ≤26mΩ | |
VSWR | ≤1.3 | |
Material & Mechanical Characteristics | ||
Center Conductor | Male | Sn-P Bronze,gold plated |
Female | Beryllium bronze, gold plated | |
Elastic Contact | Beryllium bronze | Gold plated |
Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
Insulators | Glass sintering/PTFE/PEI | |
Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s |
Detailed Drawing
Model Number | Description |
SMP(M)-JHD160 | SMP Hermetically sealed male PCB rf connetor |
Features and Benefits
Gold plated |
Sub-miniature |
DC to 40 GHz |
Compact size |
Push-on or snap coupling |
Full detent, Limited detent and Smooth bore |
PCB & cable mount connector |
Male and Female, Straight and Right Angle choice |
Cable mount versions for both flexible and semi-rigid cable Materials |
Normal type and hermetic, Flange mount & Thread-In Mount choice |
Applications
- Military
- Antennas
- Broadband
- Aerospace
- Broadband
- Telecommunications
- Instrumentation
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs or specifications. Custom dimensions is accepted.
