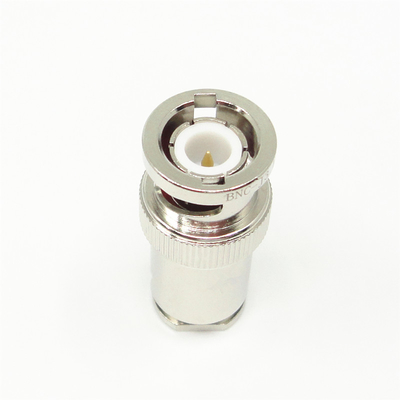

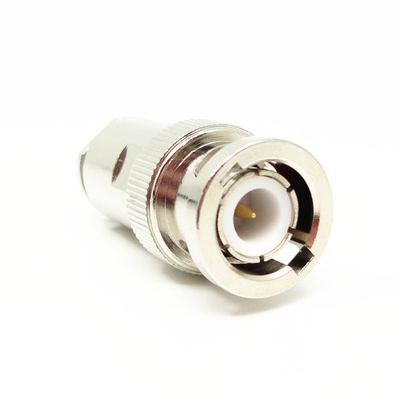

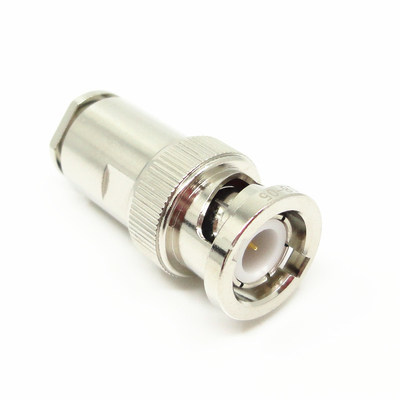

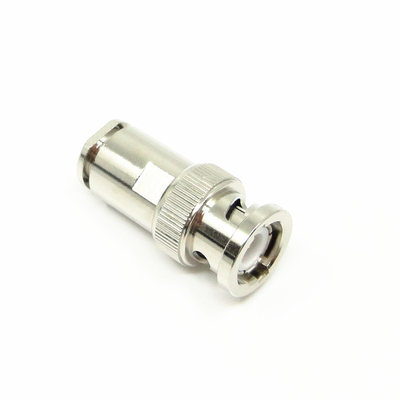

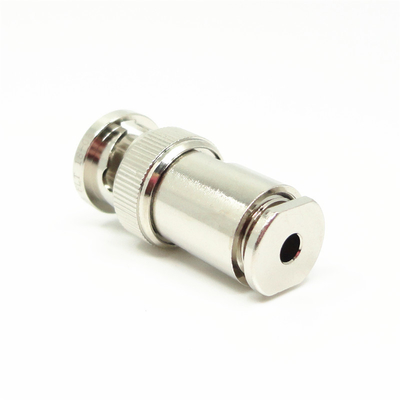

BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable

BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable
BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable

Large Image :  BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: BNC-J3
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Detailed Product Description
Product Name: BNC RF Conector Plating: Nickel Plated
Durability: 500 Cycles Contact Material: Brass, BeCu
Material: Brass Design Standard:: IEC 60169-8
Type: Straight Gender: Male
High Light:

BNC Male Electronic RF Connector

,

RG316 Cable Electronic RF Connector

,

RG316 Cable BNC Compression Connector

BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable



The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cables. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television and other radio-frequency electronic equipment, test instruments, video signals, and was once a popular connector for 10BASE2 computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 or 75Ohms .The BNC connector works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment. Which have the bayonet structure coupling mating and developed according to MIL-C-39012/16-24l, They can be interchangeable with the same-type connectors of abroad, engaged and disengaged rapidly, used to connect coaxial cables in radio equipment and instruments.



BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable 0

Specification


Electrical Characteristics
Impedance 50Ohm
Frequency Range DC~4GHz
Rated Voltage 500 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1500 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MOhm
Contact Resistance Outer conductor ≤uygneduyoaix2.0mOhm
Center conductor ≤0.5mOhm
VSMR ≤1.3



Product Drawing

BNC Male Electronic RF Connector BNC Compression Connector for RG316 Cable 1





Material & Mechanical Characteristics
Center Conductor Male/Plug Brass Gold plated
Female/Socket Sn-P bronze Gold plated
Resilience Contact Beryllium bronze Nickel Plated
Shell / Housing Brass,stainless steel Nickel Plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles



RoHS Compliant Yes
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 0.58N max
Un-Coupling Force 0.6 N max


Environmental Specification:


Operating Temperature -45 to +155Deg C
IP Rating ( Mated ) IP67


Features:


- Low cost combined with high quality.

- Broadband performance with low reflection from DC to 4GHz.

- 50Ohm impedance

- Quick connect/disconnect snap-on mating reduces installation time
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- BNC connectors are available in straight or right angle versions as well as bulkhead, 2 holes panel, 4 holes panel or mountless options.

- Available for affixement to industry standard cable and as a printed circuit board device

- Provide repeatable performance


Application:


* Computer/LANs

* Radio/CCTV

* Broadband

* Instrumentation

* Antennas

* Telecom

* Computers

* Broadcast

* Video systems

* Automotive

* Telecommunications

* Wireless industries

* Measurement equipment

* Base stations


NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
