| Hertemic: | Water Proof | Gender: | Female |
|---|---|---|---|
| Impedance: | 50Ω | Frequency: | DC~18GHz |
| Durability: | 500 Cycles | Insulation Resistance: | ≥5000MΩ |
| VSWR: | ≤1.3 | Insulating Medium: | PTFE |
| High Light: | 4 Hole SMA Flange Mount Connector,Hermetically Sealed SMA Flange Mount Connector,4 Hole flange mount connector |
||

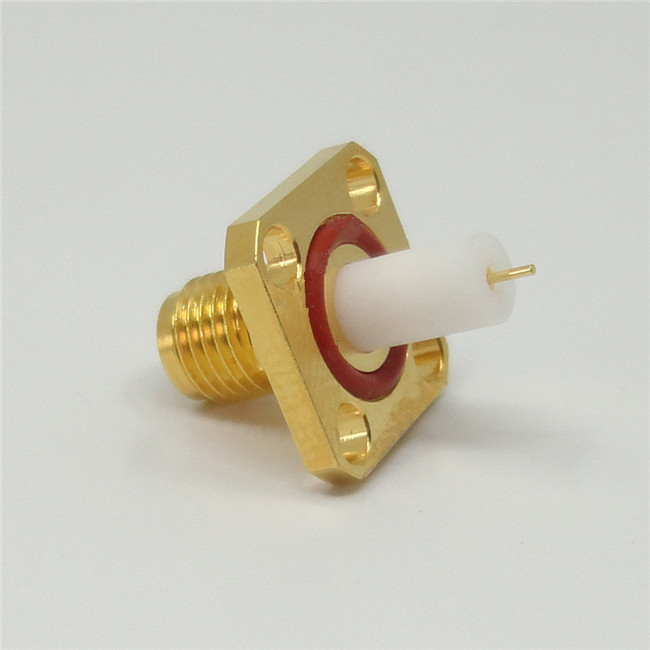

SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advan tages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
Electronic and Material Characterials:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

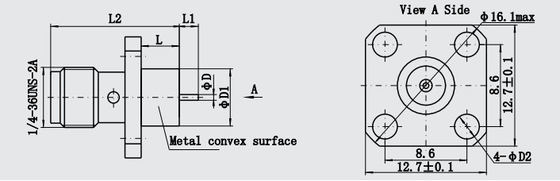

Outline Drawing:
Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
