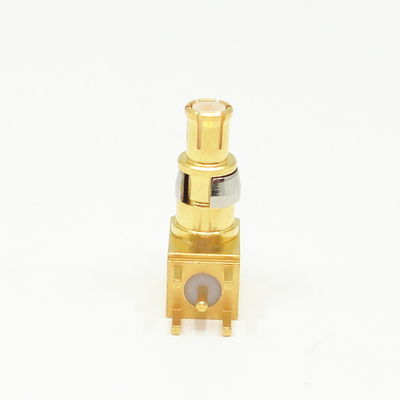

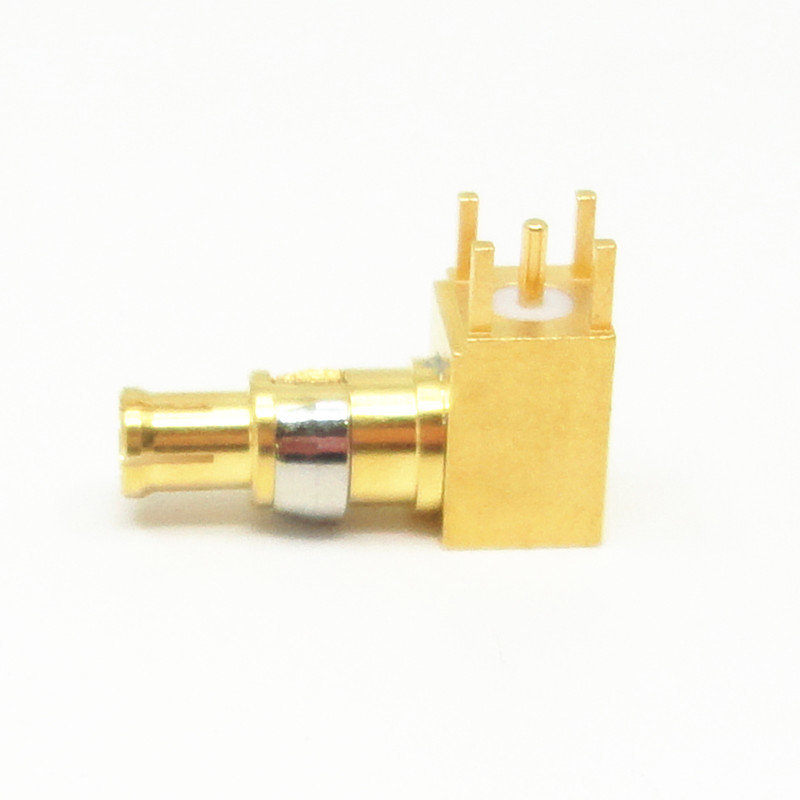

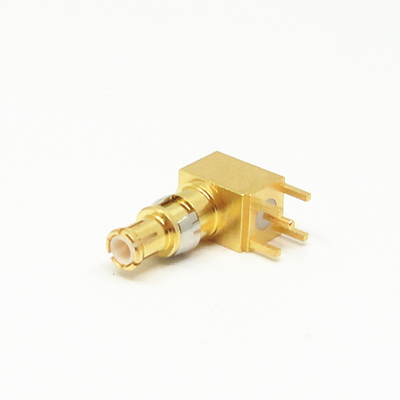

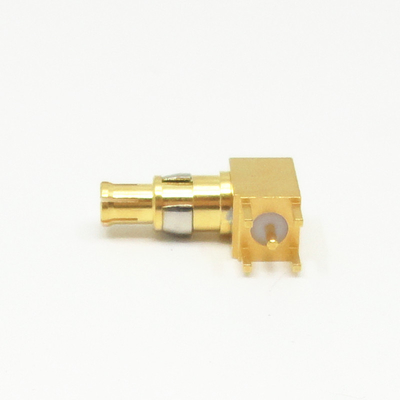

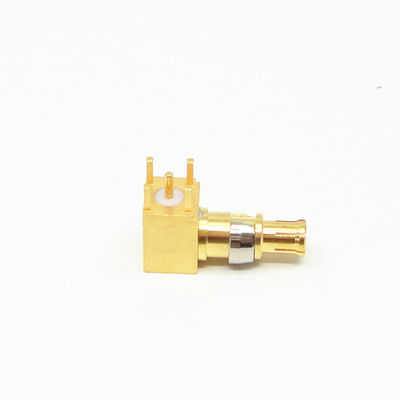

Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector

Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector
Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector

Large Image :  Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS ISO-9001-2015
Model Number: MCX-JWHD
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within in 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Product Name: MCX RF Coaxial Conector Impedance: 50Ω
Certificate: CE ROHS ISO-9001-2015 Durability: 500 Cycles
Gender: Male/Plug Body Style: Right Angle
Material: Brass Mount Method: Panel Mount
Plating: Gold Plating
High Light:

PCB Mount MCX Male Connector

,

Panel Mount MCX Male Connector

,

PCB Mount RF Solder Connector

Solder PCB Mount MCX Male RF Connector

MCX RF Connector Introduction

MXC series radio frequency coaxial connectors are used for equipment that requires weight and volume. The operating frequency can reach 6GHz. It adopts plug-in interface design and the interface size is similar to SMB. But the volume is smaller, the contact is more reliable, and the connection is more convenient, which can meet the requirements of digital communication density and miniaturization.

Features and Benefits

  • Frequency Range: DC - 6 GHz
  • Gold plated & passivated stainless steel
  • Plugable
  • Male and Female, Straight and Right Angle choice
  • Normal type and hermetic seals Flange mount & Thread-In Mount choice
  • The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
  • Custom connectors available

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~6GHz
Rated Voltage 250VRMS*
Dielectrics Voltage-resistance 750VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤2.5mΩ,
  Center conductor Normal≤5mΩ,
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass, Gold-plated
  Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators PTFE

Detailed Drawing of Solder PCB Mount MCX Male RF Connector :

Panel/PCB Mount MCX Male Connector Pluggable RF Solder Connector 0

Applications

  • Antennas
  • Board-to-board interconnect
  • Telecommunications
  • Instrumentation

Product Cataloge:

RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
