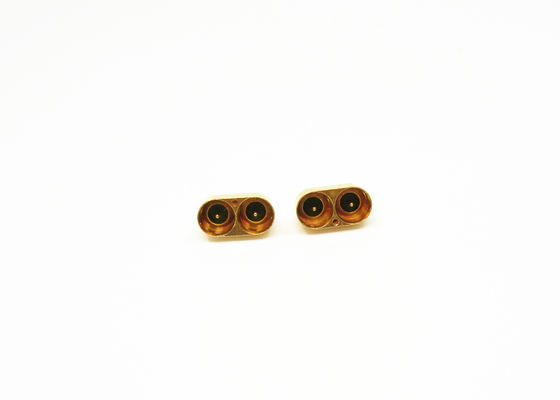

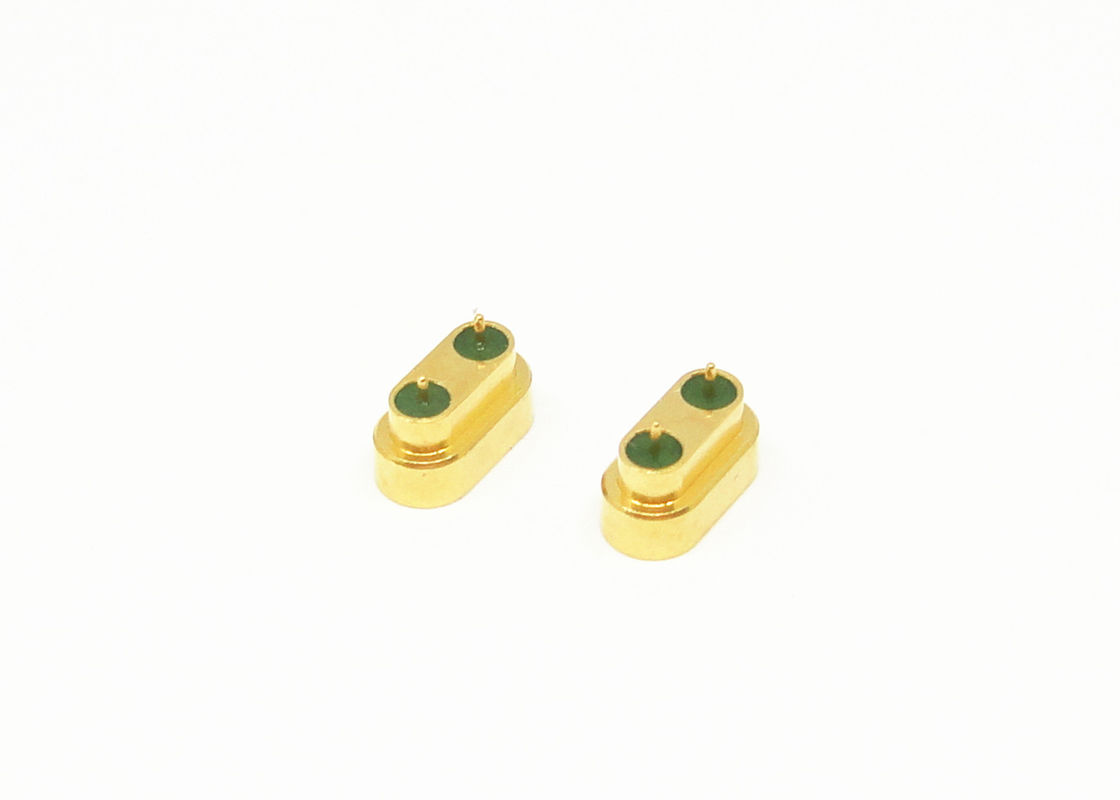

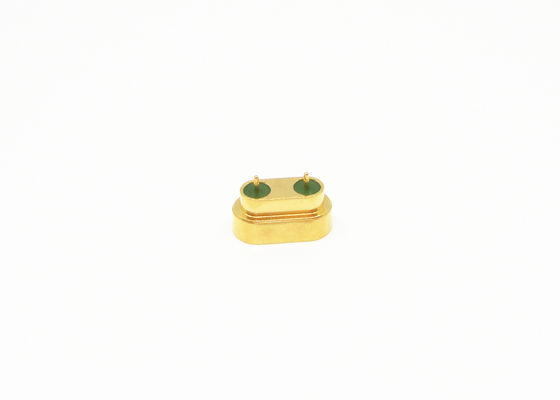

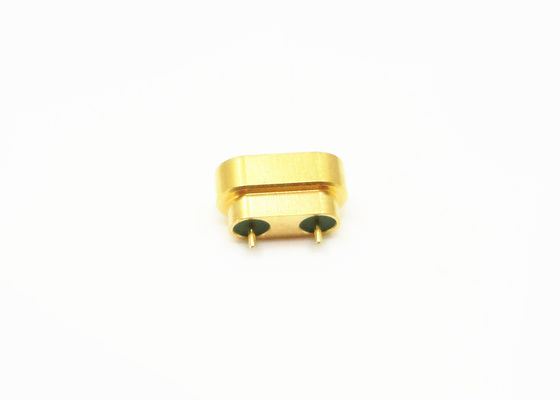

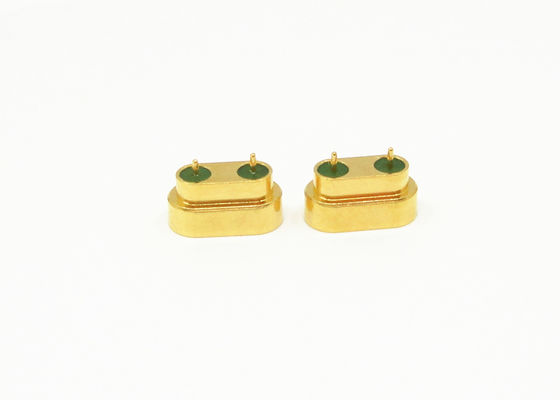

50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector

50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector
50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector

Large Image :  50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ISO-9001-2015
Model Number: SMP(M)-JHD5491-S
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Product Name: SMP RF Coaxial Conector Impedance: 50Ω
Certificate: ISO-9001-2015 Durability: 500 Cycles
Gender: Male/Plug Body Style: Straight
Plating: Gold Plating Material: Brass
Mount Method: Solder Attachment
Highlight:

Hermetically Sealed SMP RF Connector

,

50Ohm SMP RF Connector

,

50Ohm male bulkhead connector

50Ohm Hermetically Sealed SMP Plug Male Bulkhead Connector



SMP RF Connector Introduction

The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 Ghz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.

                                                           50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 0

Features and Benefits

  • Gold plated & passivated stainless steel
  • Industry standard per MIL-STD-348
  • Frequency Range: DC - 40 GHz
  • Push-on or snap coupling
  • Male and Female, Straight and Right Angle choice
  • Normal type and hermetic seals Flange mount & Thread-In Mount choice
  • The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
  • Custom connectors available

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤2.5mΩ, Sealing≤4mΩ
  Center conductor Normal≤6mΩ, Sealing≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
  Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/

Outline Drawing:(Unit:mm)

50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 1

50Ohm Hermetically Sealed SMP RF Connector Male Bulkhead Connector 2
Applications

  • Antennas
  • Aerospace
  • Board-to-board interconnect
  • Telecommunications
  • Instrumentation

Product Cataloge:

RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
