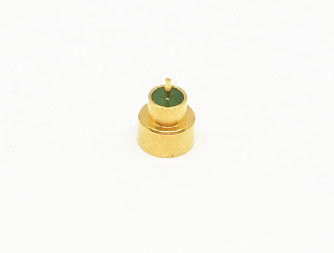

Smooth Bore Right Angle SMP Coaxial Connector Solder Mount Hermetically Sealed
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Connector | Rated Voltage: | 170VRMS* |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~40GHz |
| Gender: | Male | Lifespan: | 500Cycles |
| Highlight: | Right Angle SMP Coaxial Connector,Smooth Bore SMP Coaxial Connector,Smooth Bore coaxial cable plug |
||
Smooth Bore Right Angle Solder Mount Hermetically Sealed SMP Coaxial Connectors
The SMP interface enables design engineers to increase design performance and complexity while also improving form factor.
The SMP interconnect series relies on a floating female-to-female adapter (commonly referred to as a bullet) to enable SMP male and PCB connector-equipped boards to be stacked. This durable construction gives this product line the ability to:
* Tolerate radial and axial misalignment
* Withstand multiple engagement/disengagement cycles without degradation in electrical performance
Features:
- DC to 40 GHz
- Sub-miniature
- Gold plated
- Compact size
- Push-on or snap coupling
- PCB & cable mount connectors
- Full detent, Limited detent and Smooth bore
- Male& Female, Straight & Right Angle choice
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Cable mount versions for both flexible and semi-rigid cable Materials
Specification
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
* Satcom
* Network
* Computer/LANs
* Base Station
* Outdoor facilities
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Glass-to-metal Hermetic Seals |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
