Stainless Steel 1.85 Mm Female RF Connector Straight

Large Image : Stainless Steel 1.85 Mm Female RF Connector Straight Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ROHS ISO-9001-2015
Model Number:	1.85-KFD8G

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Item:	Millimeter Wave Connectors	Gender:	Female
Material:	Stainless Steel	Keywords:	1.85 Mm MMW Connectors
Plating:	Passivated	Application:	RF
Connector Type:	4 Hole Flange Panel Connectors	Body Style:	Straight
Highlight:	1.85 Mm Female RF Connector , Stainless Steel Female RF Connector , 1.85 Mm rf female connector

Stainless Steel 1.85 mm Female Straight RF Connector

1.85mm connector is a high performance millimeter wave connector.Its usage frequency can up to 67 Ghz. Using air interface and threaded connection, it can be interchanged with 2.4mm connector. It has the advantages of small size, light weight, high frequency of use and reliable connection. It is commonly used in high frequency microwave measurement and millimeter wave devices.

Stainless Steel 1.85 Mm Female RF Connector Straight 0

Specification:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~67GHz
Rated Voltage		170 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		500 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Beryllium bronze gold plated
	Female	Beryllium bronze gold plated
Shell and other metal parts		Brass /stainless Stain gold plated /passivated
Insulator		PEI/PLF
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

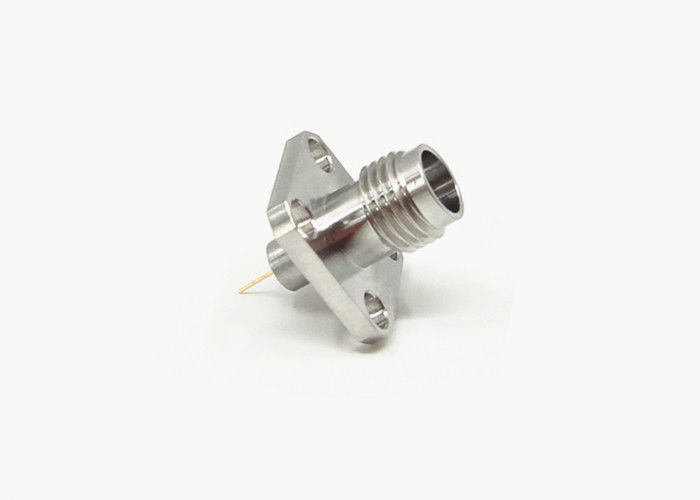

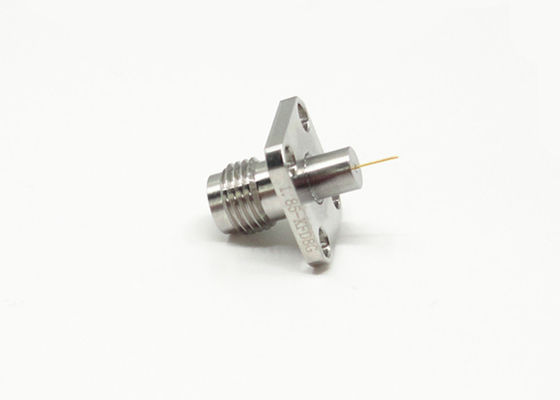

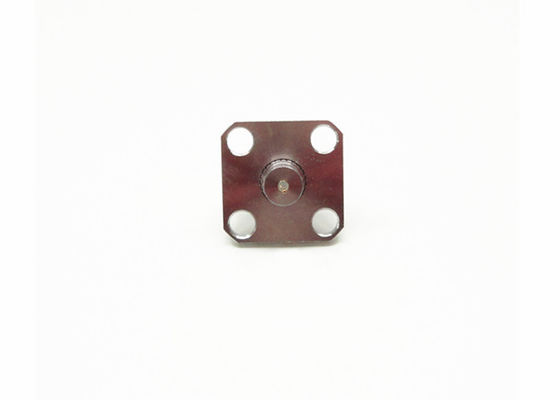

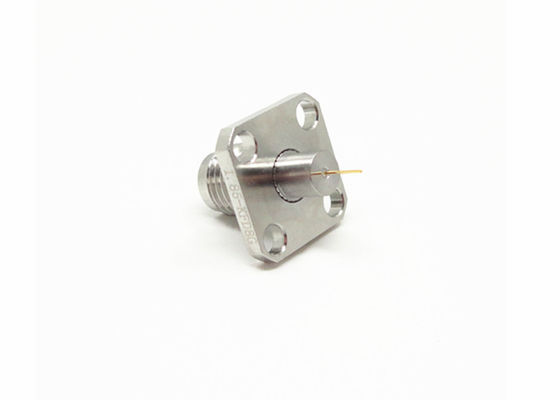

More Pictures of Stainless Steel 1.85 mm Female Straight RF Connector:

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system
