Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Female | Body Style: | Straight |
| Material: | Brass | Plating: | Gold Plating |
| Highlight: | 50Ohm SMP Female To Female Adapter,Blindmate SMP Female To Female Adapter,Blindmate coax adapter female to female |
||
50Ohm Gold Plated Blindmate SMP Female to SMP Female Adapter
The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 Ghz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

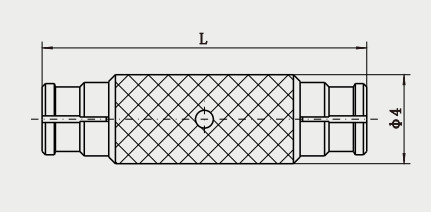

| Model No. | L(mm) | Note |
| SMP-KK16 | 14.5 | SMP female to SMP female adapter |
| SMP-KK23 | 14.8 | |
| SMP-KK31 | 13.7 |
Applications
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
Other SMP Female to Female Adapter
1.
| Model No. | Description |
| SMP-KK1 | SMP female to female adapter with length 26mm |
2.
| Model No. | Description |
| SMP-KK2 | SMP female to female adapter with length L=18.2mm |
| SMP-KK10 | SMP female to female adapter with length L=17.8mm |
3.
| Model No. | Description |
| SMP-KK3 | SMP female to female adapter with length L=8.1mm |
| SMP-KK8 | SMP female to female adapter with length L=7.75mm |
| SMP-KK22 | SMP female to female adapter with length L=6.45mm |
| SMP-KK26 | SMP female to female adapter with length L=9.45mm |
| SMP-KK29 | SMP female to female adapter with length L=8.5mm |
| SMP-KK46 | SMP female to female adapter with length L=7.2mm |
| SMP-KK105 | SMP female to female adapter with length L=25.5mm |
| SMP-KK106 | SMP female to female adapter with length L=8.6mm |
| SMP-KK117 | SMP female to female adapter with length L=14.65mm |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
