High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug

Large Image : High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS ISO-9001-2015
Model Number:	SMP-JFD155G-S

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within in 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMP RF Coaxial Conector	Certificate:	CE ROHS ISO-9001-2015
Life Span:	500 Cycles	Gender:	Male/Plug
Body Style:	Straight	Material:	Stainless Steel
Mount Method:	Flange Mount	Imdepence:	50Ohm
Plating:	Passivated
Highlight:	Male 50Ohm SMP RF Connector , Limited Detent SMP RF Connector , SUS 50Ohm smp male connector

High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug

SMP RF Connector Introduction

The SMP interface is a small-sized connector that matches the size of MMCX connectors, but it offers a wider frequency range of DC to 40 Ghz. The SMP interconnect series employs floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This robust structure and ability to tolerate misalignment in both radial and axial directions enable blind interconnection solutions. It is commonly utilized in compact high-frequency coaxial modules.

Features and Benefits

The characteristic impedance is 50Ω.
The frequency range can be from DC to 40GHz.
The operating voltage is 335VRMS at sea level.
The withstand voltage can reach 500VRMS at sea level.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s

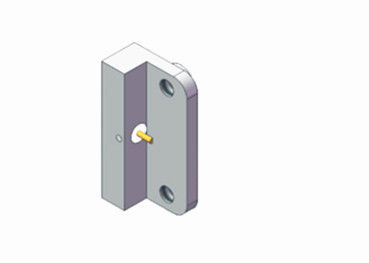

Detailed Drawing of

High-Strength Stainless Steel SMP Male 2-Hole Flange RF Connector with Smooth Bore Plug :

Applications

In military and aerospace fields, SMP video connectors can be used to connect various high-frequency coaxial modules and components.
SMP video connectors can also be applied in testing and measurement fields, such as microwave device testing and RF signal analysis.
In medical and industrial fields, SMP video connectors can be used to connect various sensors and instruments for high-precision data acquisition and processing.
SMP video connectors can also be used in communication equipment, such as fiber optic communications and satellite communications, to transmit high-speed data signals.
