| Product Name: | SMP RF Coaxial Connector | Plating: | Passivated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS ISO-9001-2015 |
| Lifespan: | 500 Cycles | Style: | Straight |
| Material: | Stainless Steel | Mount Method: | 2 Holes Flange Mount |
| Gender: | Male | ||
| Highlight: | Limited Detent SMP Male Connector,RF 2 Hole SMP Male Connector,RF 2 Hole mini smp connector |
||

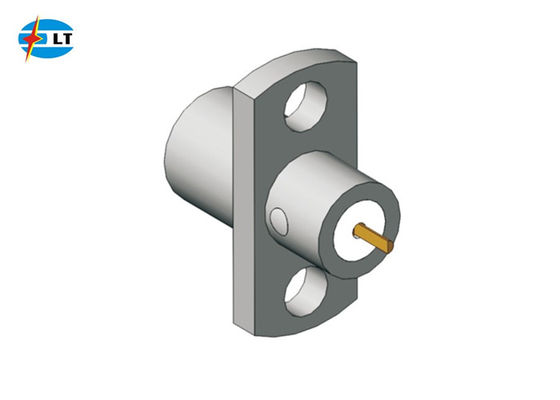

RF 2 Holes Flange Mount Limited Detent SMP Male Connector
The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a freqquency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly called bullets) to achieve stacking of boards equipped with SMP male PCB connectors. This durable structure and ability to withstand radial and axial misalignment allows blind interconnection solutions. It is commonly used in miniaturized high frequency coaxial modules.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
|
Center Resistance |
Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
(Unit:mm)
|
Model Number
|
Interface Style
|
Note |
|
SMP-JFD19G
|
Limited Detent
|
|
| SMP-JFD19G-S | Smooth Bore |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
