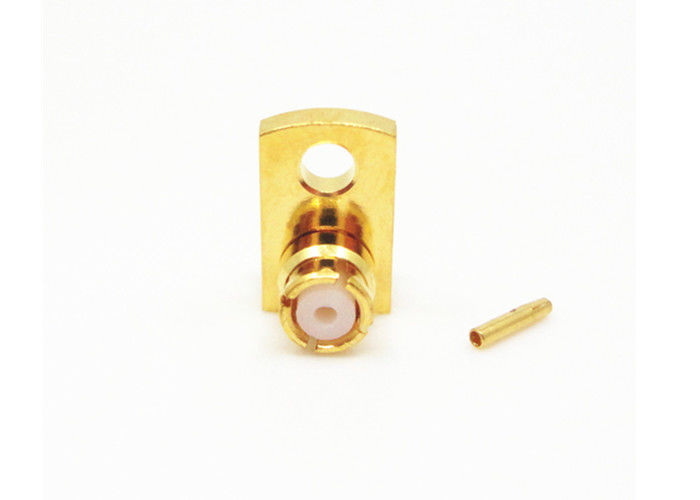

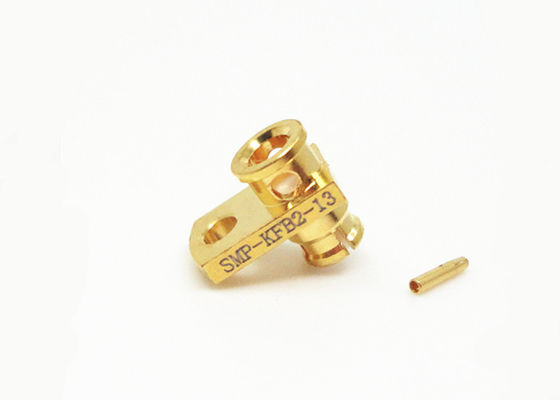

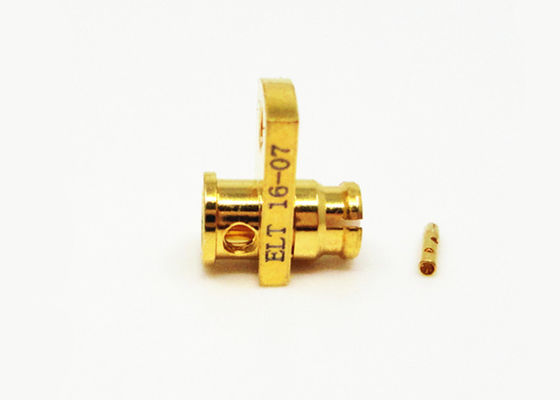

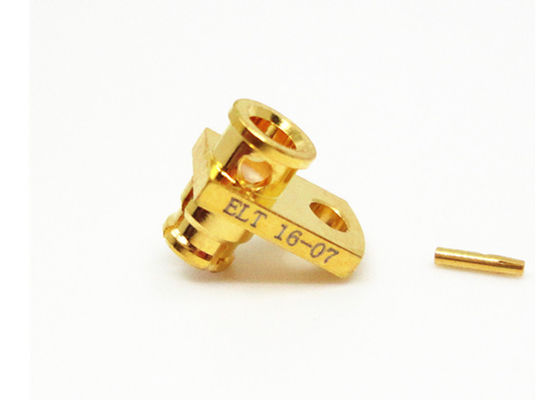

Flange Mount Cable Female Straight 1 Hole SMP RF Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Coaxial Conector | Plating: | Golden |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS ISO-9001-2015 |
| Durability: | 500 Cycles | Gender: | Jack/Female |
| Body Style: | Straight | Material: | Brass |
| Mount Method: | Flange Mount | ||
| High Light: | 1 Hole SMP RF Connector,Flange Mount SMP RF Connector,Flange Mount smp sma adapter |
||
1 Hole Flange Mount Cable SMP Female Straight RF Connector
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.
Features and Benefits
- Gold plated
- DC to 40 GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore
Applications
- Broadband
- Instrumentation
- Aerospace
- Military
- Instrumentation
- Broadband
- Board-to-board interconnect
- Phased array antennas
- Antennas
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Detailed Drawing of 1 Hole Flange Mount Cable SMP Female Straight RF Connector:
|
Model Number
|
Cable Type
|
|
SMP-KFB2-13
|
2#Semi-flexible/2#Semi-rigid
|
Product Cataloge:
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
