CXN3506 Cable Right Angle Male 500VRMS SMP RF Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Coaxial Conector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Gender: | Male | Life Span: | 500Cycles |
| Body Style: | Right Angle | Material: | Brass |
| High Light: | 500VRMS SMP RF Connector,CXN3506 SMP RF Connector,500VRMS male coax connector |
||
SMP Connector Right Angle Male Connector for CXN3506 Cable
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking).
Features and Benefits
- DC to 40 GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

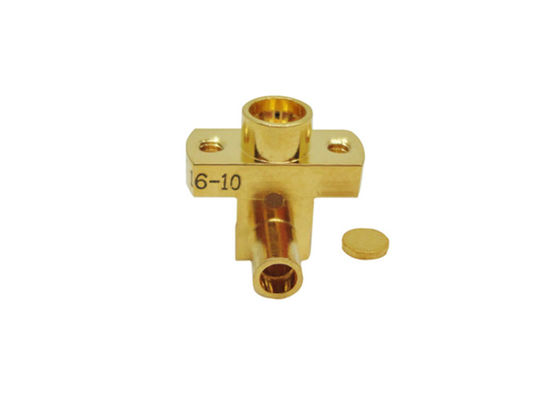

Outline Drawing and Picture of SMP Connector Right Angle Male Connector for CXN3506 Cable:
Applications
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
