Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector

Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector
Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector

Large Image :  Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS ISO-9001-2015
Model Number: SMP(M)-JYD23
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within in 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Product Name: SMP RF Coaxial Conector Impedance: 50Ω
Certificate: CE ROHS Durability: 500 Cycles
Gender: Male Body Style: Straight
Frequency Range: DC-40GHz Mount Method: Bulkhead Mount
Highlight:

Coaxial Male Bulkhead Connector

,

SMP Male Bulkhead Connector

,

SMP bulkhead electrical connector

Hermetically sealed SMP Coaxial Connector Male Bulkhead Connector



SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector, which has the characters of small volume,light weight,excellent seismic performance,and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS
Dielectrics Voltage-resistance 500VRMS
Insulation Resistance ≥2000MΩ



Contact Resistance

Outer conductor ≤4mΩ
Center conductor ≤26mΩ





VSWR

  DC~18GHz 18~26.5GHz 26.5~40GHz
Straight Connector ≤1.25 ≤1.3 ≤1.5
Angle Connector ≤1.3
Adapter ≤1.2 ≤1.3 ≤1.5
Other ≤1.3

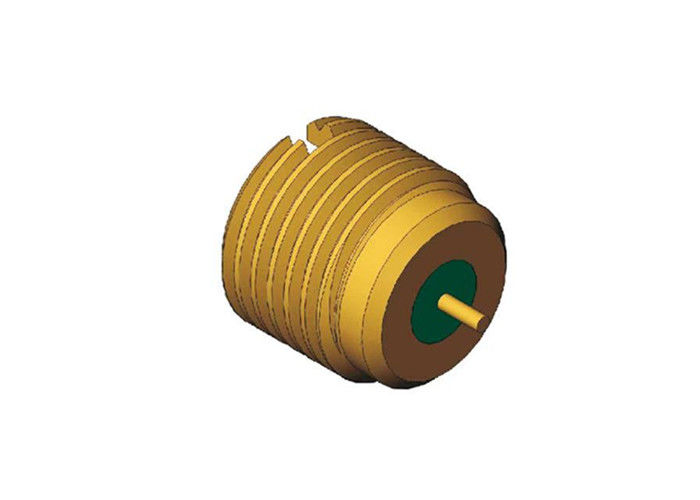

Detailed Drawing of Hermetically sealed SMP Coaxial Connector Male Bulkhead Connector:

Hermetically Sealed SMP Coaxial Male Bulkhead RF Connector 0
Features and Benefits

-DC to 40 GHz
-Sub-miniature
-Push-on or snap coupling
-Compact size
-Cable mount versions for both flexible and semi-rigid cable Materials
-PCB & cable mount connectors
-Gold plated
-Normal type and hermetic, Flange mount & Thread-In Mount choice
-Male& Female, Straight & Right Angle choice
-Full detent, Limited detent and Smooth bore



Applications

- Antennas

- Instrumentation

- Broadband
- Board-to-board interconnect
- Phased array antennas



Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
ls.
