| Product Name: | SMA Female To Mini SMP Female Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Dielectric: | PTFE | Type: | RF Adaptor |
| Application: | RF | Gender: | Female To Female |
| Material: | Gold Plated | Color: | Gold |
| Lifespan: | 500 Circles | ||
| High Light: | SMA To Mini SMP RF Adapter,ROHS 50Ω RF Coaxial Adapter,RF Coaxial Adapter MIL-C-39012 |
||

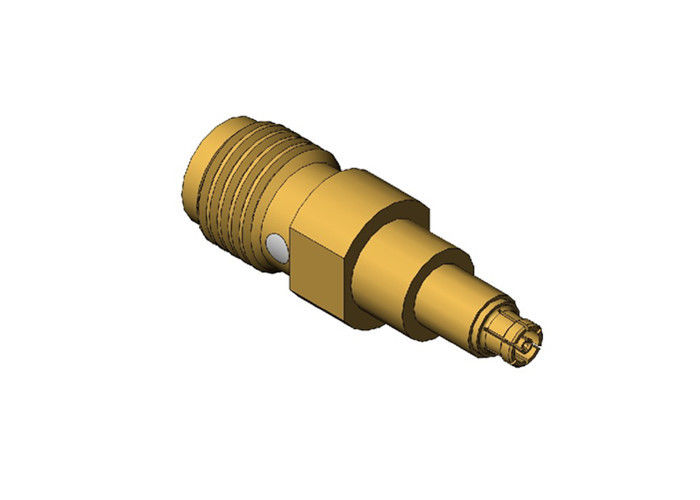

SMA Female to Mini SMP Female RF Coaxial Adapter
The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.
Mini SMP connector is also called SMPM, SSMP connector. It's a miniature push-on RF coaxial connector, which have the characters of small volume (compared with SMP), light weight, wide working broadband, etc. Apply for the couple usage of board to board connectors ,for the situation of modular intensive mounting and the plug has two interface form with full detent and smooth bore.
Outline Drawing and Picture(mm)
Related Products
1.
| Mode No. | Description |
| BNC/SMA-KK | BNC male to SMA male adapter |
2.
| Model No. | Description |
| K/SMP-KFK5 | K female to SMP female adapter |
3.
| Model No. | Description |
| SMA/BMA-KFK11 | SMA Female to BMA female adapter |
4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.
| Model No. | L1 | L2 | L3 | D1 | D2 | Note |
| SMA/SMP-KFK14 | 2.9 | 9.3 | 6 | 12.8 | 2.2 | |
| SMA/SMP-KFK26 | 2.8 | 8.6 | 6 | 11.8 | 1.9 | |
| SMA/SMP-KFK29 | 2.9 | 9.4 | 5.5 | 13.8 | 2.2 |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
