Product Details:
Payment & Shipping Terms:
|
| Brand Name: | ELT (Elite) | Description: | N Female To SMA Female Adapter |
|---|---|---|---|
| Product Name: | RF Adapter | Plating: | Gold Plated |
| Impedance: | 50Ω | Certificate: | ROHS ISO-9001-2015 |
| Dielectric: | PTFE | Body Style: | Straight |
| High Light: | N Female To SMA Female Adapter,Hermetically RF Coaxial Adapter,N Type Female To SMA Female Adapter |
||

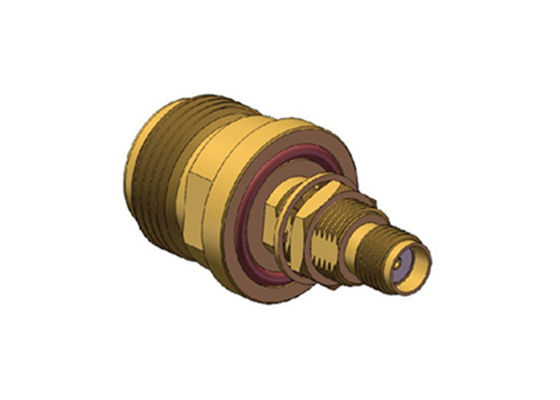

Hermetically Type N Female to SMA Female RF Connector Coaxial Adapter Test Converter
N Type are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.
Connector B:
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.
As manufacturer, we can customize N SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

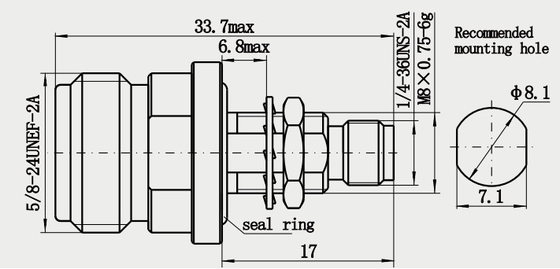

Detailed Drawing:
Application:
- Wireless
- Antennas
- Broadband
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Product Cataloge:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Related Products
1.K male to SMP male RF Connector
2.K female to SMP female flange mount RF Connector
3. SMA male to BMA male RF Connector
4.Quick Insert SMA Male to SMA Female RF Connector
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
