| Impedance: | 50 Ohm | Product Name: | SMP Male To Male RF Adapter |
|---|---|---|---|
| Plating: | Passivated | Body Material: | Stainless Steel |
| Gender: | Male To Male | Type: | SMP Adapter Male |
| Interface: | Limited Detent, Smooth Bore | Connection Type: | In-Series |
| High Light: | coaxial cable adapter,rf cable adapters |
||
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.
Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors.
Apply for the install situation with the requirement of high reliability modular intensive.
| General Specification for SMP Connector Adapter | ||||
Impedance | 50Ω | |||
Frequency Range | DC~40GHz | |||
Rated Voltage | 170VRMS(at sea level) | |||
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) | |||
Insulation Resistance | ≥2000MΩ | |||
Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ | |||
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ | |||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male | Sn-P bronze | gold plated | |
| Female | beryllium bronze | gold plated | ||
Elastic Contact | beryllium bronze | gold plated | ||
Shell and other Metal Parts | gold plated brass, passivated stainless steel | |||
Insulators | glass sintering/PTFE/PEI | |||
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s | |||
Unit: mm

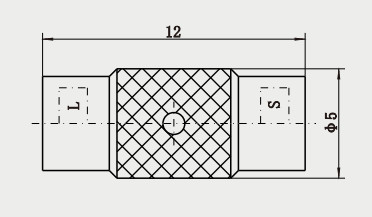

Outline Drawing of
Stainless Steel SMP Male to Male RF Adapter
| Model No. | Description |
| SMP-JJG-LS | SMP male |
Related SMP Male Female RF Adapters
1.
| Model No. | Description |
| SMP-JFJG | SMP male to male adapter, 2-hole flange mount, stainless steel, |
2.
| Model No. | Description |
| SMP-JYJ2G | SMP male to male adapter,bulkhead mount, stainless steel, both sides are limited detent. |
3.
| Model No. | Description |
| SMP-JFJ2G-LS | SMP male to male adapter, 2-hole flange mount, stainless steel, |
4.
| Model No. | Description |
| SMP-JWFK1X2 | SMP male to female adapter, right angle, two position, 4-hole Flange |
5.
| Model No. | Description |
| SMP(M)-JYJ1 | SMP male to male adapter, hermetically sealed, both sides are limited detent. |
6.
| Model No. | Description |
| SMP(M)-JYJ2-S | SMP male to male adapter, hermetically sealed, both sides are smooth bore. |
| SMP(M)-JYJ2-FS | SMP male to male adapter, hermetically sealed, left side is smooth bore, right side is full detent. |
7.
| Model No. | Description |
| SMP-JFJ8-LC | SMP male to male adapter, 2-hole flange mount, |
8.
| Model No. | L(mm) | |
| SMP-KK59 | 16 | Compression Length:15mm, right end mated with smooth bore only. |
| SMP-KK62T | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK62T-Y1 | 13 | Compression Length:12mm, right end mated with smooth bore only. |
| SMP-KK190T | 12.7 | Compression Length:11.9mm, right end mated with smooth bore only. |
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
