| Product Name: | SMP Adapter Male To Male | Impedance: | 50 Ohm |
|---|---|---|---|
| Body Material: | Brass | Color: | Gold Plated |
| Gender: | Male To Male | Interface: | Limited Detent |
| Type: | SMP Adapter | Other: | Hermetic |
| High Light: | coaxial cable adapter,rf cable adapters |
||

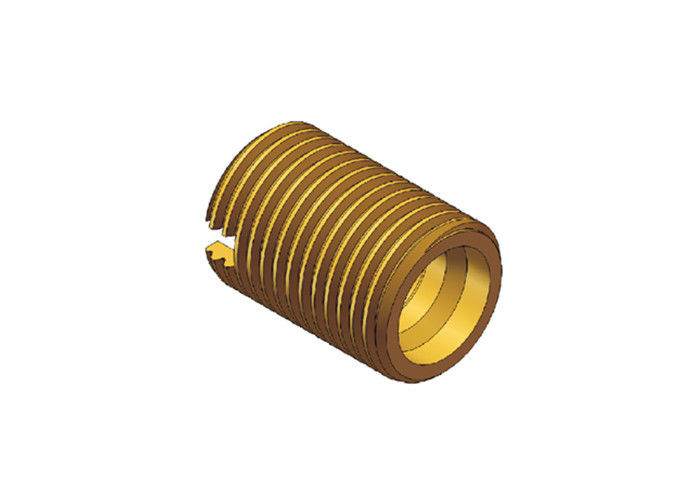

Hermetically Sealed SMP Male To SMP Male Adapter Bulkhead Limited Detent
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

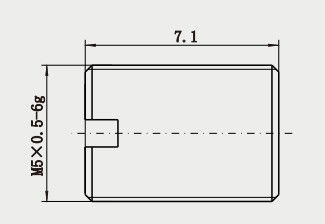

Unit: mm
Outline Drawing of
Hermetically Sealed SMP Male To SMP Male Adapter Bulkhead Limited Detent
| Model No. | Description |
| SMP(M)-JYJ1 | SMP male to male adapter, hermetically sealed, both sides are limited detent. |
Related SMP Male Female Adapters
1.
| Model No. | Description |
| SMP(M)-JYJ2-S | SMP male to male adapter, hermetically sealed, both sides are smooth bore. |
| SMP(M)-JYJ2-FS | SMP male to male adapter, hermetically sealed, left side is smooth bore, right side is full detent. |
2.
| Model No. | Description |
| SMP-JFJ2G-LS |
SMP male to male adapter, 2-hole flange mount, stainless steel, L stand for limited detent, S for smooth bore. |
3.
| Model No. | Description |
| SMP-JFJ8-LC |
SMP male to male adapter, 2-hole flange mount, L stand for limited detent, C for catchers mitt. |
4.
| Model No. | Description |
| SMP-JFJG |
SMP male to male adapter, 2-hole flange mount, stainless steel, both sides are limited detent. |
5.
| Model No. | Description |
| SMP-JJG-LS |
SMP male to male adapter, 2-hole flange mount, stainless steel, L stand for limited detent, S for smooth bore. |
6.
| Model No. | Description |
| SMP-JYJ2G |
SMP male to male adapter,bulkhead mount, stainless steel, both sides are limited detent. |
7.
| Model No. | Description |
| SMP-JWFK1X2 | SMP male to female adapter, right angle, two position, 4-hole Flange |
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
