Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Frequency: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| VSWR: | ≤1.3 | Gender: | Male |
| Model: | SMP-JFD138G | ||
| High Light: | mini smp connector,smp coaxial connector |
||
JFD Microstrip Series Male SMP RF Connector Coaxial Connector Frequency 40GHz
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz, and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2mΩ |
| Center conductor | Normal≤6mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits
| Gold plated |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
Applications
- Wireless
- Antennas
- Aerospace
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
Detailed Drawing
| Model Number | Description |

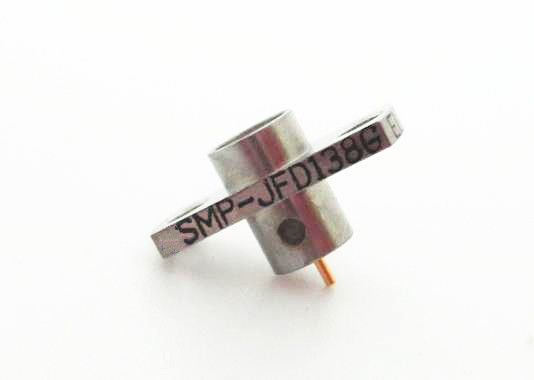

| SMP-JFD138G | Stainless steel male 2-hole flange rf connector |
Product Cataloge:
| J30J Series Connector |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| RF Adapter |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| N Type RF Connector |
| Microwave Rotary Joints |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
