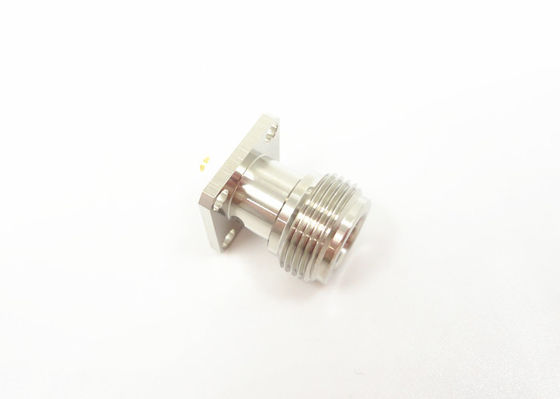

Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS

Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS
Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS

Large Image :  Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: N
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1,000,000 Pieces Per Month
Detailed Product Description
Product Name: N Type RF Coaxial Conector Plating: Gold Plated/ Nickel Plated
Impedance: 50Ω Frequency Range: DC~11GHz
Model: N-KFD36 Gender: Female
Highlight:

coaxial cable n type connectors

,

n type coax connector

50Ohm Straight Female N Type RF Connector Bulkhead Nickel Plated

N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11 GHz typical frequency range. Our frequency can be up to 18 GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.

We can customize various type-n connectors as per customers' different requirement.



Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~11GHz(Max.18GHz)
Rated Voltage 1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance 1500VRMS*(Max.Sea Level)
Insulation Resistance ≥5000MΩ
Center Resistance Outer conductor ≤0.5mΩ
Center conductor ≤1.5mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass, Gold plated
Female Phosphor Bronze, Gold plated
Resilient Contact Phosphor Bronze Nickel Plated Passivated
Shell / Housing Brass Stainless steel Gold plated Passivation
Cable Clamp Brass Nickel Plated
Insulator PTFE
Gasket Silicone Rubber
Durability 500 Cycles





Detailed Drawing

Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS 0

Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS 1



Bulkhead N Type RF Connector 50Ω Impedance Female Small Size CE ROHS 2



Applications:



* Computer/LANs

* Base Station

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Radio, TV aerial system

* Mobile communication





Product Cataloge:

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide To Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)



Features:

Gold plated
Sub-miniature
DC to 40 GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of  N Type Connector, if the connector you are using is not found, please contact us with your detai
ls.

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us
