| Plating: | Au Plated | Impedance: | 50Ω |
|---|---|---|---|
| Cable Length: | 23mm (Customizable) | Application: | Electronic,RF,Industrial And Automotive |
| Material: | Copper | Sample: | Avaiable |
| Cable Type: | CXN3506 | ||
| Highlight: | coaxial cable assemblies,custom rf cable assemblies |
||

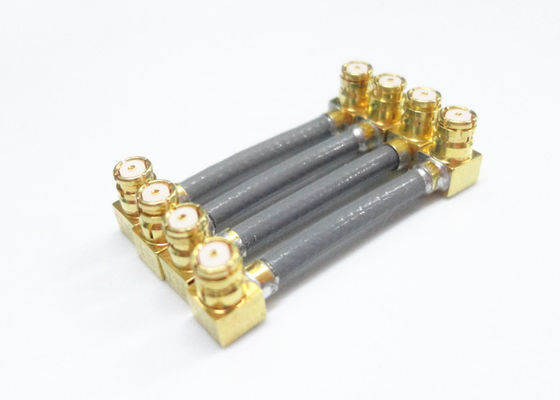

Female Right Angle SMP Coaxial Connector RF Cable Assemblies CXN3506
This SMP cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
| Electrical Characteristics | ||
| Frequency Range | 0~3GHz | |
| VSWR | ≤1.3 | |
| Characteristic Impedance | 50ohm | |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center conductor | ≤1.5mΩ |
| Outer conductor | ≤0.2mΩ | |
| Material & Mechanical Characteristics | ||
| Body |
Brass CuZnSn/Ni Plated |
|
| Temperature Range | -40-+85℃ | |
| Center conductor |
Brass Au Plated Beryllium-copper Au Plated |
|
| Durability | Mating cycles ≥500 | |
| Insulator | PTFE | |
Application:
* Computer/LANs
* Phased array radar
* Basic facility
* Radio, TV aerial system
* Mobile communication
* Instrumentation
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 16 yearS
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
