Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip

Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip
Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip

Large Image :  Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ISO-9001-2015
Model Number: SSMA-KHD
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Product Name: SSMA Female Connector Material: Brass
Type: Straight Gender: Female
Palting: Gold Plated Durability (matings): 500cycles
Weight: About 80~150g
Highlight:

din coax connector

,

coaxial cable connectors

Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip



The SSMA Series RF coaxial connector is an even more miniaturized adaptation of the SMA connector, renowned for its compactness, broad operational frequency band, and superior dependability. This class of connectors is widely applied in multiple sectors such as aviation, aerospace, and microwave communication networks.

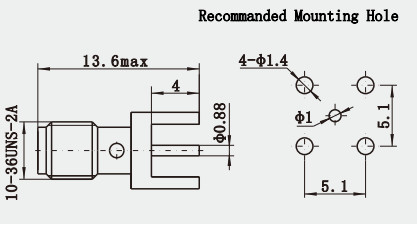

Product Display of Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip :

Mini SMA Brass Female SSMA PCB Mount RF Connector with Microstrip 0





Electrical Characteristics

Note:The specific data of the model are based on the data in the product specification sheet.

Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Sn-P Bronze Gold plated
Female Beryllium copper Gold plated
Shell and other metal parts Brass Beryllium copper Gold plated
Stainless steel passivated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.5 -0.7N.m



Product Features:

1. Miniaturized Design: SSMA connectors are a more compact version of SMA connectors, offering smaller dimensions for space-constrained applications.

2. Solderability: These connectors often come with solder pins or leads suitable for through-hole or surface mounting, allowing easy integration into PCBs.

3. Broad Frequency Range: SSMA connectors can handle signals up to 18 GHz or even higher frequencies, making them appropriate for broadband applications.

4. Low Insertion Loss: Due to their optimized design, SSMA connectors maintain low insertion loss when transmitting high-frequency signals.

5. High Reliability and Durability: These connectors are designed to provide reliable performance in harsh environments, including vibration, shock, and temperature fluctuations.





Application:



1. Wireless Communication Equipment: This includes base stations, wireless access points, and other communication facilities that require small but high-performance connectors for antenna and transmission line connections.

2. Satellite Communication Systems: In satellite ground stations and mobile communication vehicles, SSMA connectors are used for transmitting high-frequency signals since they can handle frequencies up to 18 GHz or higher.

3. Test and Measurement Instrumentation: Precision testing equipment such as network analyzers and spectrum analyzers favor SSMA connectors for their low insertion loss and low voltage standing wave ratio (VSWR).

4. Medical Devices: In high-end medical imaging equipment like MRI and CT scanners, as well as surgical tools, SSMA connectors are used for transmitting high-frequency signals.

5. Automotive Radar Systems: With the increasing adoption of radar technology in the automotive industry for safety and navigation features, SSMA connectors can be used to connect components within vehicle radar systems.



NOTE:

We can supply over 1000 types of  RF connectors, if it is not match with your request,pls contact us.
