Detailed Product Description
Product Name: MMCX Series Connector Gender: Female
Plating: Gold Plated Material: Brass
Impedance: 50Ω Durability: 500 Cycles
Type: Straight
High Light:

mmcx antenna connector

,

micro miniature rf connectors

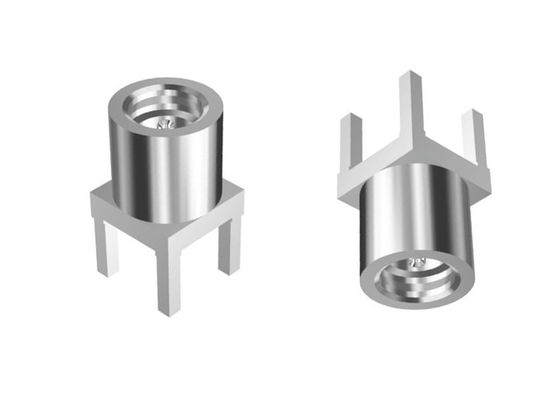

Straight Female MMCX RF Connector Microstrip RF Coaxial Connector

MMCX series is a kind of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight.

Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.



Straight Female Coaxial Cable Connectors MMCX Jack Connector 13.6N Max Mating Force 0

Specification



Electrical Characteristics
Impedance 50Ω
Frequency Range DC~6GHz
Rated Voltage 170VRMS
Dielectrics Voltage-resistance 500VRMS
Insulation Resistance ≥2000MΩ
Center Resistance Center Conductor ≤10mΩ
Outer Conductor ≤5mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Beryllium bronze Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Gold plated
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles

RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 13.6N max
Un-Coupling Force 13.6N max



Detailed Images
Straight Female Coaxial Cable Connectors MMCX Jack Connector 13.6N Max Mating Force 1



Features:



-Low cost combined with high quality.

-Broadband performance with low reflection from DC to 6 GHz.

-Quick connect/disconnect snap-on mating.

-50 Ohm impedance

- Available for affixement to industry standard cable and as a printed circuit board device

-Provide repeatable performance



Application:



* Network

* Satcom

* Computer/LANs

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system
