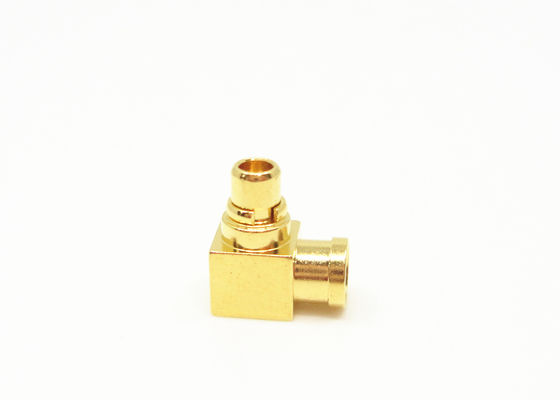

| Product Name: | MMCX Series Connector | Gender: | Male |
|---|---|---|---|
| Plating: | Gold Plated | Material: | Brass,Beryllium Bronze |
| Impedance: | 50Ω | Durability: | 500 Cycles |
| Type: | Right Angle | ||
| High Light: | mmcx jack connector,micro miniature rf connectors |
||
Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.
Specification
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | DC~6GHz | ||
| Rated Voltage | 170VRMS* | ||
| Dielectrics Voltage-resistance | 500VRMS* | ||
| Insulation Resistance | ≥2000MΩ | ||
| Center Resistance | Center Conductor | ≤10mΩ | |
| Outer Conductor | ≤5mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Beryllium bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Gold plated | ||
| Shell and other Metal Parts | Brass Gold plated | ||
| Crimping Sleeve | Brass Nickel plated | ||
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Features:
-Low cost combined with high quality.
-Broadband performance with low reflection from DC to 6 GHz.
-Quick connect/disconnect snap-on mating.
-50 Ohm impedance
- Available for affixement to industry standard cable and as a printed circuit board device
-Provide repeatable performance
Application:
* Network
* Satcom
* Computer/LANs
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
