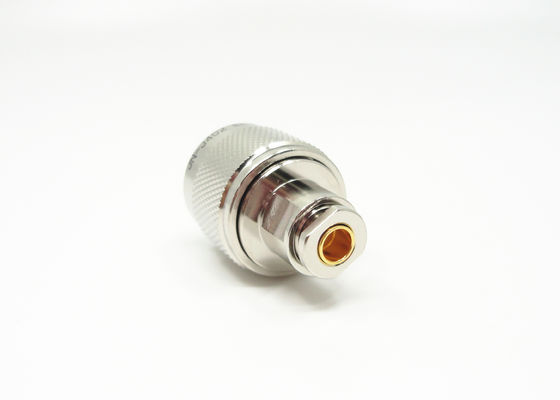

| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-J402 | Gender: | Male |
| High Light: | n type bulkhead connector,n type coax connector |
||
N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. The frequency range of connector in our company can be up to 18GHz.
They are applicable to different types of RF cables and commonly adopted in aviation, radar, wireless, microwave, digital communications and measurement instrument etc.
We can customize various type-N connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Nickel plated |
| Female | Phosphor Bronze, Nickel plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel | Nickel plated |
| Cable Clamp | Brass | Nickel Plated |
| Durability | 500 Cycles | |
| Gasket | Silicone Rubber | |
| Insulator | PTFE | |
Detailed Drawing
| Model Number | L(mm) |
| N-J402 | 35.7 |
| N-J142 | 35 |
Applications:
* Mobile communication
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Mobile communication
