Product Name: | BNC RF Conector | Plating: | Nickel Plated |
---|---|---|---|
Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
Material: | Brass | Design Standard:: | IEC 60169-8 |
Type: | Straight | Gender: | Male |
Highlight: | bnc cable connector,coaxial cable bnc connector |

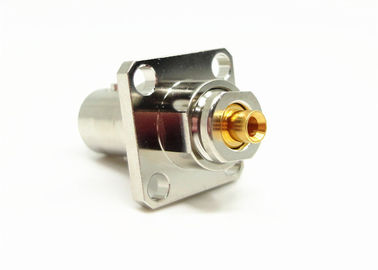

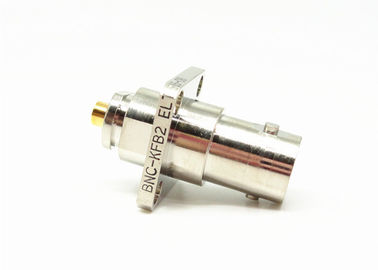

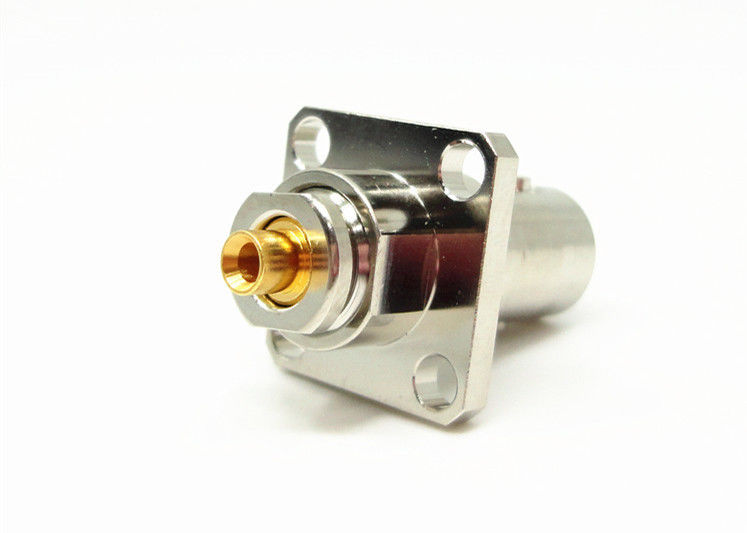

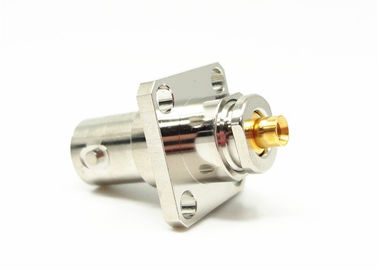

50Ohm Electrical Bayonet BNC Female Bulkhead Straight RF Coaxial Connector
The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and was once a popular connector for 10BASE2 computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 ohms or 75Ohms .It works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment. Which have the bayonet structure coupling mating and developed according to MIL-C-39012/16-24l, They can be interchangeable with the same-type connectors of abroad, engaged and disengaged rapidly, used to connect coaxial cables in radio equipment and instruments.
Specification
Electrical Characteristics | ||
Impedance | 50 Ohm | |
Frequency Range | DC~4GHz | |
Rated Voltage | 500 VRMS (Maximum sea-level) | |
Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) | |
Insulation Resistance | ≥5000MOhm | |
Contact Resistance | Outer conductor | ≤2.0mOhm |
Center conductor | ≤0.5mOhm | |
VSMR | ≤1.3 |
Product Drawing
Material & Mechanical Characteristics | |||
Center Conductor | Male/Plug | Brass | Gold plated |
Female/Socket | Sn-P bronze | Gold plated | |
Resilience Contact | Beryllium bronze | Nickel Plated | |
Shell / Housing | Brass,stainless steel | Nickel Plated | |
Insulators | PTFE | ||
Sealing Ring | Silicone Rubber | ||
Durability | 500 cycles |
RoHS Compliant | Yes |
Mating Cycles | 500Cycles |
Contact Retention | 10N min |
Cable Retention | 100N min |
Mating Force | 0.6N max |
Un-Coupling Force | 0.6 N max |
Environmental Specification:
Operating Temperature | -45 to +85Deg C |
IP Rating ( Mated ) | IP67 |
Features:
- Quick connect/disconnect snap-on mating reduces installation time
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 6GHz.
- 50Ohm impedance
- Available for affixement to industry standard cable and as a printed circuit board device
- Provide repeatable performance
Application:
*Antennas
*Automotive
*Computer/LANs
*Radio/CCTV
*Telecommunications
* Wireless industries
* Measurement equipment
* Base stations
* Telecom
* Computers
* High-speed cable modems
* Broadcast
* Video systems
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
