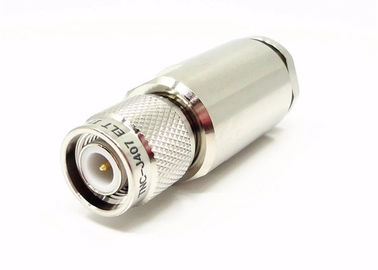

Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector

Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector
Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector

Large Image :  Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: TNC-KF3A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Detailed Product Description
Product Name: TNC Conector Plating: Nickel Plated
Impedance: 50Ω Durability: 500 Cycles
Contact Material: Brass, BeCu Material: Bass
Design Standard: IEC 60169-17 Type: Straight
High Light:

tnc bulkhead connector

,

tnc jack connector

50 Ohm High Quality Nickel Plated TNC Male Straight RF Coaxial Connector



TNC series product is designed as a threaded version of BNC connector, the TNC RF connectors features screw threads for mating.TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating from DC-11GHz, there are two types of TNC connectors:standard and reverse polarity.these low cost connector typically utilize die cast and molded components.While performance will not be equal to the industrial or high performance grade products, these connectors are ideal for use on a varity of commercial applications. Widely used for antenna connections, TNC have many applications in avionics, communications and general industrial markets.



Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector 0

Specification


Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~4GHz
Rated Voltage
2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
750VRMS (Maximum sea-level)
Insulation Resistance
≥2000MΩ
Contact Resistance
Outer conductor
≤6mΩ
Center conductor
≤1.5mΩ
VSMR
≤1.3


Mechanical Specification

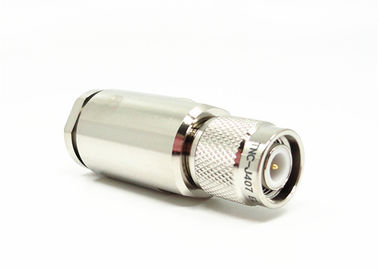

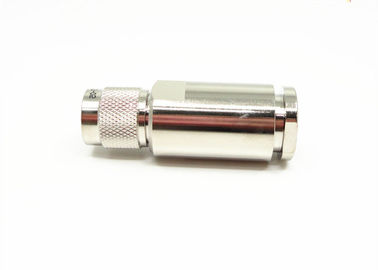

Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector 1Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector 2


Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 13.6N max
Un-Coupling Force 13.6N max


Environmental Specification:


Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64


Detailed Drawing

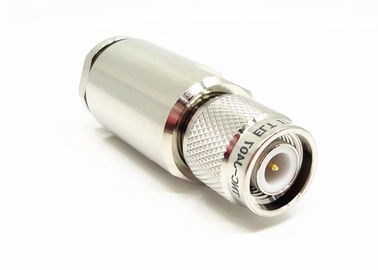

Nickel Plated TNC RF Connector IEC 60169-17 RF Design Standard Coaxial Connector 3

Features:

1, TNC series RF Electronic connector is designed as a threaded version of BNC connector.
2, TNC RF connectors features screw threads for mating.
3, There are two types of TNC connectors:standard and reverse polarity
4, These low cost china supplier factory RF connector typically utilize die cast and molded components.
5, While performance will not be equal to the industrial or high quality grade products,these RF crimp connectors are ideal for use on a varity of commercial applications
6,The TNC series products are a kind of whorl joining, it has work width frequently join reliable.

7, RF TNC connectors are miniature, threaded waterproof units with a constant 50Ohm impedance,operating from DC-11GHz

Application:

* Base Station
* Network
* Antennas
* Telecom
* Computers
* Cellular mobile telephones
* Instrumentation
* High-speed cable modems
* Telecommunications

NOTE:

We have over 10,000 types of TNC Connector, if the connector you are using is not found, please contact us with your details.
