DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field

DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field
DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field

Large Image :  DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMP-KWB1
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000 Pieces Per Month
Detailed Product Description
Product Name: SMP RF Coaxial Conector Frequency Range: DC~40GHz
Impedance: 50Ω Gender: Female
VSWR: ≤1.3 Certificate: CE ROHS
Mount Method: Flanges Mount Model: SMP-KWB1
Highlight:

smp coaxial connector

,

mini rf connector

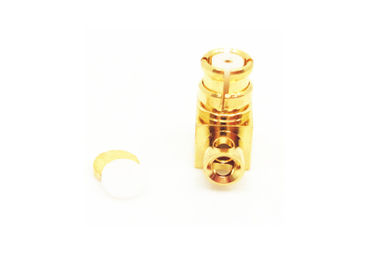

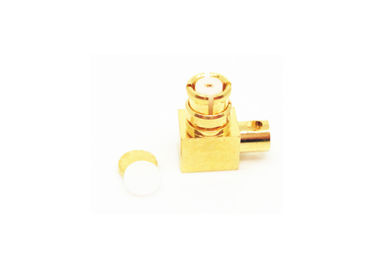

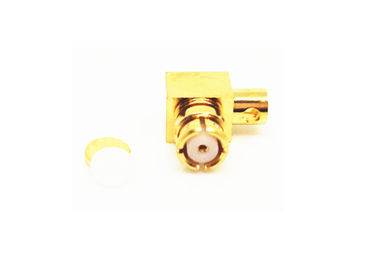

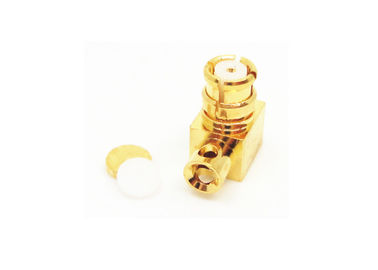

Right Angle Female SMP RF Connector Coaxial Connector for RF Microwave Field



SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.



                                           DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field 0

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥2000MΩ
Dielectrics Voltage-resistance  500VRMS*
Center Resistance Outer conductor Normal≤2.5mΩ, Sealing≤4mΩ
  Center conductor Normal≤6mΩ, Sealing≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
  Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s


Features and Benefits

Gold plated
Sub-miniature
DC to 40GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight  and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice


Applications

- Antennas
- Medical
- Aerospace

- Broadband

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect




Detailed Drawing
DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field 1
DC to 40GHz SMP RF Connector Coaxial Connector for RF Microwave Field 2

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)


Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
