Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Durability: | 500 Cycles | Item: | SMP Female Connector |
| Mount Method: | 2 Holes Flange | Model: | SMP-KWF2 |
| Highlight: | smp coaxial connector,mini rf connector |
||

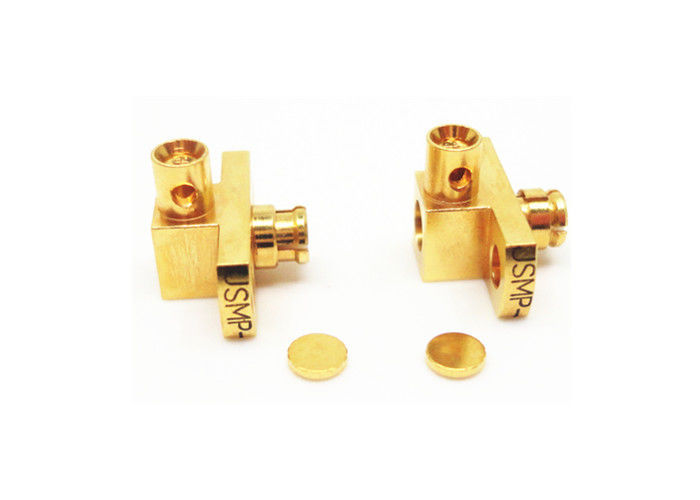

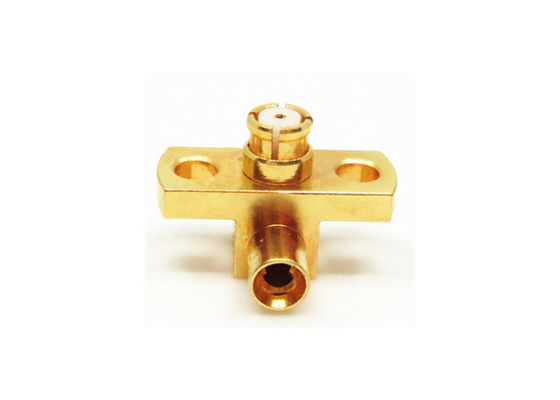

Female Right Angle SMP RF Connector Miniature 2 holes Flange Mount
SMP is a subminiature push-on(snap coupling) RF coaxial connector which has the characters of small volume, light weight, excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits
| DC to 40GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Push-on or snap coupling |
| PCB & cable mount connector |
| Full detent, Limited detent and Smooth bore |
| Male and Female, Straight and Right Angle choice |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| RF Cable Assemblies |
| J30J Series Connector |
| Microwave Rotary Joints |
| Glass-to-metal Hermetic Seals |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Applications
- Antennas
- Broadband
- Wireless
- Instrumentation
- Board-to-board interconnect
- Phased array antennas
- Telecommunications
Detailed Drawing
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
