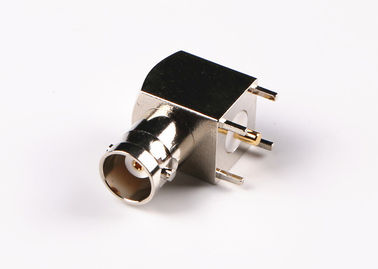

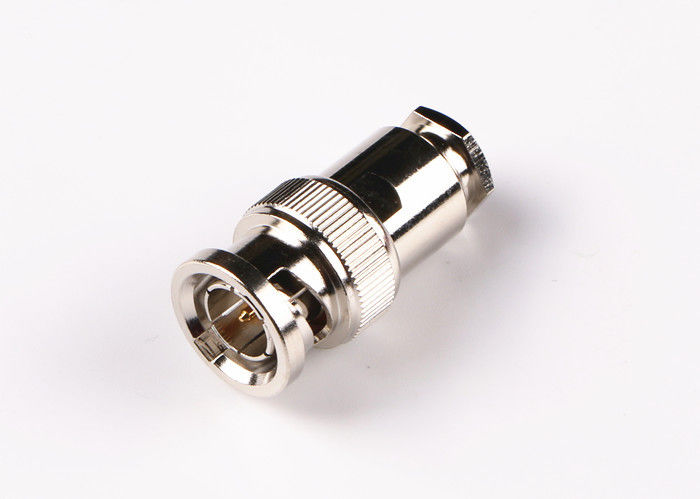

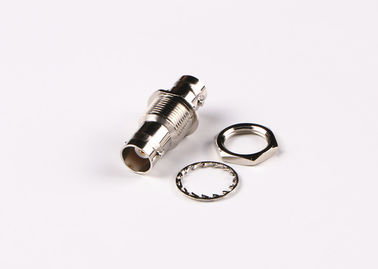

High Quality BNC Female Bulkhead Compression Straight RF CCTV Connector
The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and was once a popular connector for 10BASE2 computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 ohms or 75 ohms .It works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment.
Specification
Electrical Characteristics | ||
Impedance | 50Ω | |
Frequency Range | DC~4GHz | |
Rated Voltage | 500VRMS (Max sea-level) | |
Dielectrics Voltage-resistance | 1550VRMS (Max sea-level) | |
Insulation Resistance | ≥5000MΩ | |
Contact Resistance | Outer conductor | ≤0.5mΩ |
Center conductor | ≤2.0mΩ | |
VSMR | ≤1.3 |
