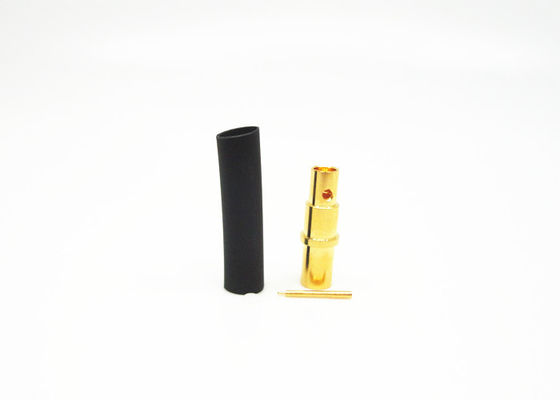

Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector

Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector
Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector

Large Image :  Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP(M)-JB2E-S
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP Connector Gender: Male
Material: Brass Plating: Gold Plated/ Nickel Plated
Impedance: 50Ω Durability: 500 Cycles
Rated Voltage: 170VRMS* Model: SSMP(M)-JB2E-S
High Light:

board to board connector

,

smpm coaxial connector

Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector​

Mini SMP is a miniature push-on RF coaxial connector, which have the characters of small volume, light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors, for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.


Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation

Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

Features

•Performance up to 65 GHz

•35% smaller size than the SMP connectors

•Allows for axial and radial misalignment (blind mate applications)
•Excellent reliability where extreme shock & vibration conditions are experienced



Small Volume Male Crimp Straight SMPM RF Connector Mini SMP Coaxial Connector 0

Application:



* Computer/LANs

* Network

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Satcom

* Outdoor facilities

* Jump line join

* Radio, TV aerial system

* Basic facility

* Mobile communication

* Instrumentation

* Base Station



Product Cataloge:

RF Adapter
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)



NOTE:
We have over 10,000 types of SSMP Connector, if the connector you are using is not found, please contact us with your detai
