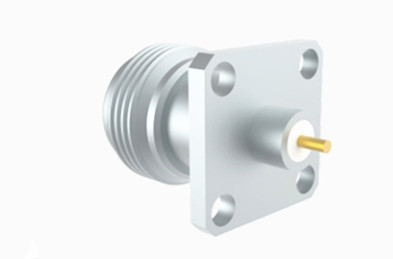

| Product Name: | N Type RF Coaxial Conector | Plating: | Nickel Plated |
|---|---|---|---|
| VSWR: | ≤1.3 | Frequency Range: | DC~11GHz |
| Model: | N-KFD209 | Impedance: | 50Ω |
| High Light: | 4 Hole Flange RF Coaxial Connector,Straight RF Connector,N Female RF Coaxial Adapter Connector |
||
The N series of connectors are engineered and fabricated in accordance with MIL-C-39012, utilizing threaded connections and air as the dielectric, providing superior electrical performance up to a frequency of 11GHz. The precision connectors offered by our company can accommodate frequencies up to 18GHz and are compatible with a diverse range of radio frequency cables. These connectors are renowned for their exceptional shock resistance, high reliability, and broad bandwidth, making them extensively utilized across sectors such as aviation, aerospace, radar, microwave communication, digital telecommunications, and microwave measurement. Furthermore, the N-type connector serves as a prevalent test interface connector, widely integrated into various testing instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Features
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |

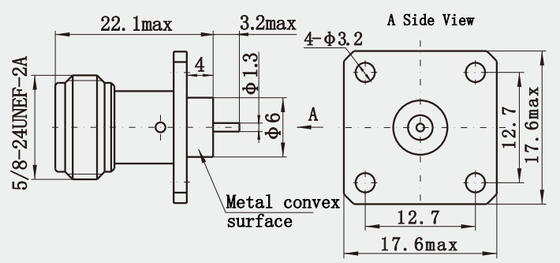

Detailed Drawing
Applications
Communication Equipment: N-type connectors are utilized in various communication devices, including microwave equipment and digital communication systems, where they connect RF cables or microstrip lines within RF circuits.
Test Instrumentation: Due to their good shielding performance, N-type connectors are commonly used in test and measurement equipment to ensure accurate signal transmission and prevent electromagnetic interference.
Military and Aerospace: N-type connectors are widely used in military communications, aerospace, and ground launch systems due to their high reliability and strong vibration resistance.
Wireless Devices: In special applications requiring high levels of protection, such as extreme temperatures, pressures, or vibration environments, N-type connectors are an ideal choice.
Antennas and Radar Systems: N-type connectors are also common in antenna and radar systems to ensure stable signal transmission and high-quality communication links.
Medical Devices: In some high-precision medical devices, N-type connectors may also be used to connect sensors and transmit signals, particularly in applications requiring miniaturized connectors.
Product Cataloge
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
