Product Details:
Payment & Shipping Terms:
|
| Product Name: | SSMB RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Beryllium Bronze |
| Material: | Brass | Design Standard:: | IEC 1169-33 |
| Type: | Straight | Gender: | Male |
| High Light: | Flexible Cable RF Coaxial Adapter Connector,Semi Rigid Cable Male RF Connector,SSMB Male RF Connector |
||

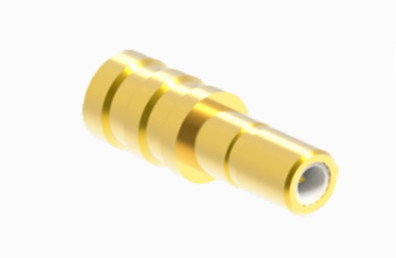

Ultra-Durable SSMB Male RF Connector: Ideal for Enhancing 2# Semi-Rigid/Flexible Cable Performance
SSMB series products are compact push-and-snap type coaxial connectors designed for radio frequency applications, engineered and produced in compliance with the IEC60169-19 standard. They boast a small form factor, lightweight construction, and user-friendly interface, making them suitable for use in miniature radio devices and measuring apparatuses.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~3GHz | |
| Rated Voltage | 170VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥2000MOhm | |
| Contact Resistance | Outer conductor | ≤5.5mOhm |
| Center conductor | ≤2.5 mOhm | |
| VSMR | ≤1.35 | |

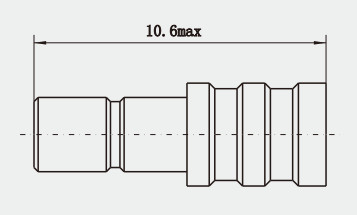

Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket |
Beryllium bronze
|
Gold plated | |
| Resilience Contact | Beryllium bronze | Gold plated | |
| Shell / Housing | Brass | Gold plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
Compact Size: SSMB connectors are designed for compactness, making them suitable for use in space-restricted environments.
Lightweight: These connectors are lightweight, which facilitates portability and installation.
Easy to Connect: SSMB connectors are user-friendly with easy push-in and snap-in mechanisms for quick connections and disconnections.
Broad Frequency Range: They are suitable for a wide range of operating frequencies, making them useful in various radio devices and electronic instruments.
Excellent Electrical Performance: SSMB connectors offer good electrical performance, which is crucial for signal transmission in high-frequency circuits.
High Reliability: These connectors are reliable and can withstand a certain degree of vibration and shock.
Different Interface Options: Depending on the application needs, SSMB connectors provide both socket (free-floating) and snap-in interface options; the former allows some axial and radial misalignment, while the latter provides a stronger hold for the connection.
Application:
Wireless Communication Equipment: In wireless base stations and other communication equipment, SSMB connectors are commonly used to connect E1 transmission cables to the DDF (Digital Distribution Frame) small transmission box at the base station.
Test Instrumentation: In measurement and testing fields, SSMB connectors are employed for signal transmission in various high-frequency test instruments due to their excellent electrical performance.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
