Flange Mount Solder And Assemble Type RF Connector TMA Male Nickel Plated

Large Image : Flange Mount Solder And Assemble Type RF Connector TMA Male Nickel Plated Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ROHS ISO-9001-2015
Model Number:	TMA-JF417-2

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	TMA Connector	Plating:	Nickel Plated
Impedance:	50Ω	Material:	Brass
Contact Material:	Brass, BeCu	Durability:	500 Cycles
Design Standard::	IEC 60169-17	Body:	Straight
High Light:	Flange Mount RF Coaxial Adapter Connector , Solder And Assemble Type RF Connector , TMA Male RF Connector

TMA Male Flange Mount Solser and Assemble Type RF Connector

The TMA series of RF coaxial connectors is recognized for its medium-power capabilities and a design that allows for blind mating. It guarantees consistent electrical contact and demonstrates exceptional mechanical and electrical performance, with an operational frequency limit of up to 6GHz. While the interface size is similar to that of the TNC connector, the TMA series stands out due to its ability to provide both axial and radial floating. Its compact individual connector size coupled with a lightweight design makes it ideal for use in blind mating within equipment racks and enclosures. Extensively used in modular connections throughout rack and enclosure systems, the TMA series presents a dependable option for a variety of RF applications that demand a space-efficient and effective connector system.

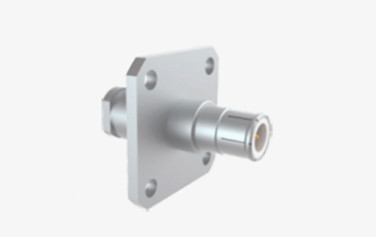

Flange Mount Solder And Assemble Type RF Connector TMA Male Nickel Plated 0

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~6GHz
Rated Voltage	500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	1500VRMS (Maximum sea-level)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	≤2.5mΩ
	Center conductor	≤2mΩ
VSMR	≤1.3

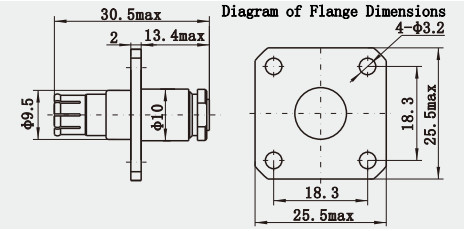

Mechanical Specification

Flange Mount Solder And Assemble Type RF Connector TMA Male Nickel Plated 1

Application:

Computer and Network Hardware: In server racks, networking equipment, and other computer hardware where space efficiency is crucial.

Consumer Electronics: In certain consumer electronics devices where a small, high-performance connector is necessary.

Features:

Interface Compatibility: The interface size of the TMA connector is similar to that of the TNC connector, which allows for some interchangeability or cross-compatibility between the two types, although they have different designs and blind-mate capabilities.
Construction: The TMA connector is known for its robust construction, which includes a threaded shell coupling mechanism for secure connections and good mechanical strength.
Environmental Rating: Like many RF connectors, the TMA can be specified with environmental protection ratings, such as IP67 or IP68, for operation in harsh conditions.
