Product Details:
Payment & Shipping Terms:
|
| Product Name: | MCX RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Durability: | 500Cycles |
| Contact Material: | Brass, BeCu | Material: | Brass |
| Design Standard:: | IEC 60169-17 | Type: | Straight |
| High Light: | MCX Female RF Coaxial Connector,Gold Plated RF Connector,Bulkhead Mount RF Connector |
||

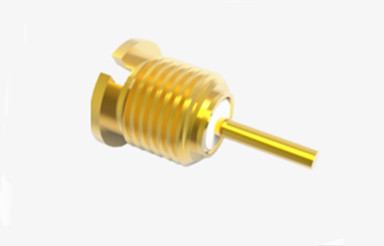

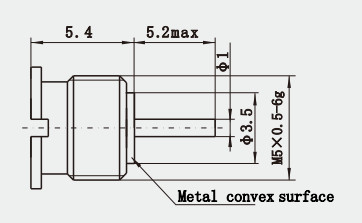

MCX Female Bulkhead Mount Gold Plated RF Connector with Long Microstrip
The MCX range of RF coaxial connectors is designed for use in environments where weight and space are at a premium, with the capacity to handle frequencies up to 6GHz. They utilize a plug-in interface, similar in design to the TMA, but offer a more compact form factor, enhanced contact reliability, and an ease of connection. These attributes make them ideally suited for applications requiring high digital communication density and miniaturization.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~6GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥2000MOhm | |
| Contact Resistance | Outer conductor | ≤2.5mOhm |
| Center conductor | ≤5.0mOhm | |
| VSMR | ≤1.3 | |
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Gold plated | |
| Shell / Housing | Brass | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Centre Contact Termination | Crimp |
| Outer Contact Termination | Crimp |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 13.6N max |
| Un-Coupling Force | 13.6N max |
Environmental Specification:
| Operating Temperature | -30 to +70 Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
Compact Design: The MCX connector is significantly smaller than other connectors like the SMB, making it ideal for space-constrained applications. It has a 3.6mm (0.14-inch) diameter, which is about 30% smaller than the SMB connector.
High Frequency Performance: MCX connectors are designed to operate at frequencies up to 6GHz, meeting the demands of high-speed digital communication systems.
Convenient Mating and Unmating: They use a push-on interface that allows for easy connection and disconnection without the need for tools or screws.
Cost-Effectiveness: The manufacturing process for MCX connectors is cost-efficient, facilitating mass production and widespread adoption.
Compatibility: MCX connectors are often used for internally routing signals to different parts of a printed circuit board (PCB) or across PCBs where planar transmission lines and waveguides have excessive loss or are prone to interference compared to a coaxial transmission line environment.
Application:
Reliable Contact: The design ensures positive contact between mating components, maintaining signal integrity over repeated connections.
Modular Assembly: The MCX series can be combined with other connectors to create custom assemblies that meet specific application requirements.
Surface Mount Termination: This feature allows for easy integration into printed circuit boards, supporting surface mount technology (SMT) processes.
Versatility: Suitable for a wide range of applications including GPS tracking, positioning systems, and various wireless communication devices.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
