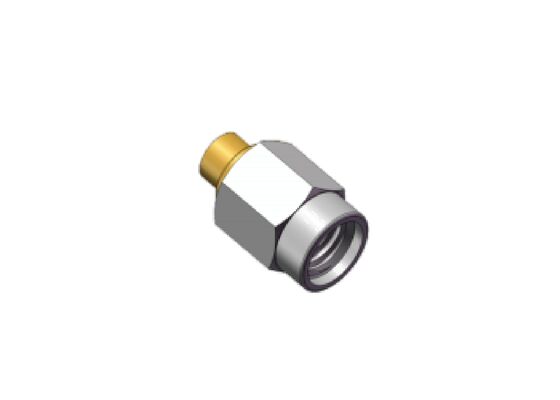

50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405

50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405

Large Image :  50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SSMA-JB2G
Payment & Shipping Terms:
Minimum Order Quantity: In Stock, MOQ 50 for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: Straight SSMA Male Cable Connector Model: SSMA-JB2G
Frequency Range: 0.3MHz-18GHz Impedance: 50Ω
DWV: 750V Insulation Resistance: ≥5000MΩ
Center Conductor: Copper Alloy, Gold Plated Mating Cable: .086 Cable, RG405
Outer Conductor: Stainless Steel, Passivation Insulators: PTFE
Samples: In Stock
Highlight:

50Ω SSMA male RF connector

,

Stainless steel SMA coaxial connector

,

18GHz RG405 cable mating connector

50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 0
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 1
Model No.:  SSMA-JB2A
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 2
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 3


Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 4
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
50Ω Stainless Steel 18GHz SSMA Male Mini SMA RF Coaxial Connector Cable Mating for .086 Cable, RG405 5
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
