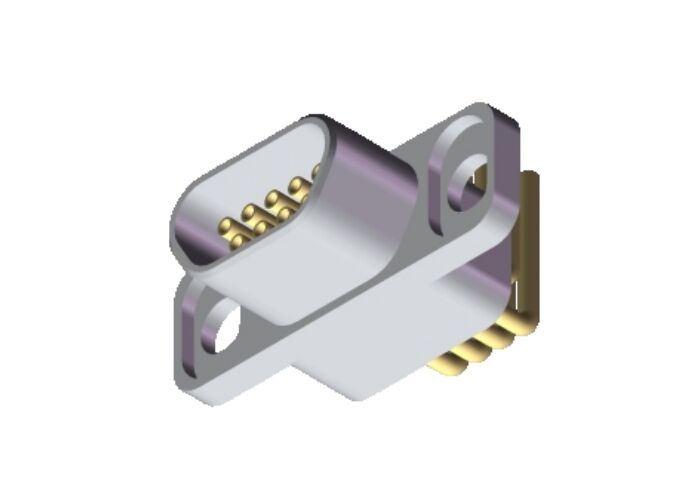

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets

Large Image : Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE, ROHS
Model Number:	J50J-9ZKW-A

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within in 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Out Shell:	Aluminum Alloy	Contact Pin:	9 Pins
Material:	Metal	Section Area:	0.15-0.3 Mm²
Contact Spacing:	1.91 Mm	Standard:	MIL-DTL-83513
Contact Type:	Micro Twist Pin, Gold Plating	Product Name:	J50J,Mirco-D, D-sub, MDM
Ceritification:	ROHS ISO-9001-2015	Leak Rate:	≤1.01X10^-3 Pa.cm^3/s
Highlight:	Micro Rectangle D Sub 9 pin connector , Hermetic D Sub connector sockets , J30J Series D Sub connector

J50J Hermiticlly D-sub Socket

J50J Series is a metal shell product with 1.91mm contact spacing, 1.65mm row spacing, the cross-sectional area of wire is 0.15-0.3mm² and the number of contacts: 9, 15, 21, 25, 31, 37, 51 and 66 contacts.

Termination type include crimping, soldering, straight PCB and right angle PCB,etc.

The product has the advantages of high density, light weight and miniaturization.

It can realize the reliable interconnection of the electrical circuit system between the internal cables to cables, cables to PCB, PCB to PCB.

Contact Arrangements
(Face View of Pin insert)

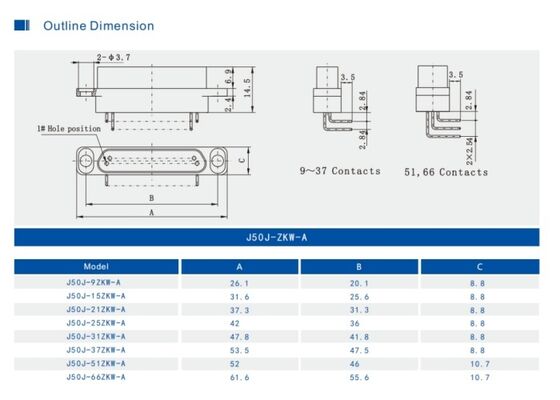

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets 0

Specification:

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets 1

Current Rating	5A
Voltage Rating	300V
Insulation Resistance	≥ 5000 MΩ
Durability	500 cycles
Dielectric Withstand Voltage	1000V
Environmental Temperature	-55℃ ~ + 125℃
Relative Humidity	+40℃ up to 95%
Vibration	10Hz~ 2000Hz 196m/S²
Impact	980m/S²
