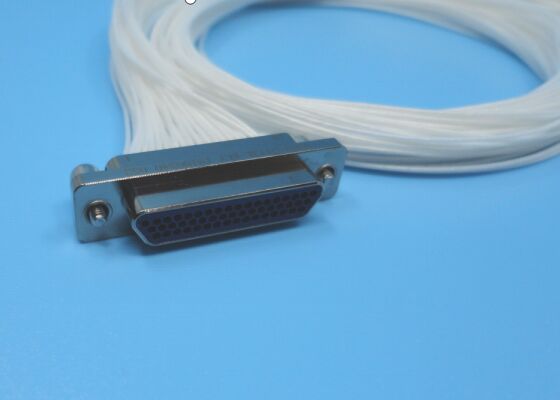

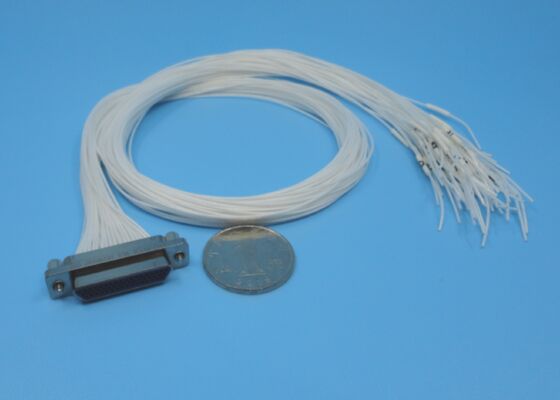

J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | J30J Series Connectors | Other Name: | Micro D Connectors |
|---|---|---|---|
| Center Conductor: | Copper Alloy, Gold Plating | Outer Conductor: | Aluminum Alloy, Nickle Plating |
| Contacts: | Male Plug | DWV: | 800V |
| Contact Termination: | Crimp | Insulation Resistance: | ≥5000MΩ |
| Contact/Pin: | 51contacts | Insulation Dielectric: | PBT |
| Operating Temp: | -55℃~+125℃ | Storage Temp.: | -55℃~+125℃ |
| Mating Cable: | AFR-250, White Wire 0.10mm2 ~0.15mm2 | Wire Length: | 1500mm, 1000mm，500mm, 300mm, 200mm |
| Customization: | Different Wire Length | ||
| Highlight: | J30J Series male plug connector,51 contacts rectangular connector plug,crimping wire connector 500mm length |
||
Product Description:
The J30J series micro‑rectangular connectors are optimized for aerospace and portable equipment, the J30J series micro-rectangular connectors combine ultra-compact size, lightweight construction, and high reliability. Featuring robust aluminum alloy shielding and vibration-resistant threaded coupling, these connectors ensure stable signal transmission in harsh environments, facilitating the miniaturization and weight reduction of modern electronic systems.
Contact System
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are gold‑plated copper alloy to supply low contact resistance and excellent corrosion resistance.
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are gold‑plated copper alloy to supply low contact resistance and excellent corrosion resistance.
Housing & Shielding
Housed in rugged AL alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Housed in rugged AL alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Termination Options
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Technical Data:
Outline Dimension of J30J Series Connector 51 contacts male Plug:
| Product Model |
J30J-51TJL-500 (51pins, male plug, wire length 500mm) |
||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
Applications:
Aerospace: Radar system, satcom, and telemetry & control systems
Electronics: Communication electronics, vehicle-mounted equipment and systems
High-end Industry: Medical equipment, testing instruments, downhole detection equipment
Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection
Customization:
Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
Packing and Shipping:
- Packaging:
The J30J Series Connectors is securely packed in a durable cardboard box withiner protected foam to prevent damage during shipping.
- Shipping:
We use reliable courier services for safe and prompt delivery. All shipments include tracking numbers & are packed securely to prevent mishandling during transportation.
